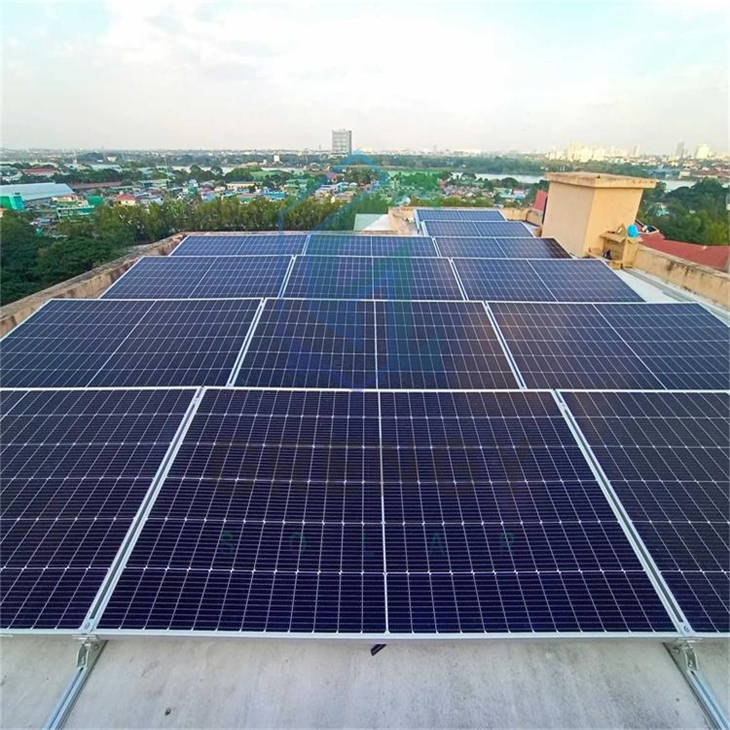

Flat Roof Solar Panel Kit



For more details,pls email:rukin@grengysolar.com



A flat roof solar panel kit is a set of components designed for easy installation of solar panels on flat roofs. It typically includes the following parts:



Solar Panels



Monocrystalline Silicon Panels: These panels are made from a single crystal of silicon, which gives them a high efficiency in converting sunlight into electricity. They usually have a sleek black appearance and perform well in various lighting conditions.

Polycrystalline Silicon Panels: Manufactured from multiple silicon crystals, these panels are slightly less efficient than monocrystalline ones but are often more affordable. They have a blueish tint and are a popular choice for cost - effective solar installations.

Thin - Film Panels: These panels are made by depositing a thin layer of photovoltaic material onto a substrate. They are flexible and lightweight, making them suitable for applications where weight and space are concerns. However, they generally have lower efficiency compared to crystalline silicon panels.



Mounting System



Ballasted Mounts: This type of mount uses weights, such as concrete blocks or gravel, to hold the solar panels in place. Ballasted mounts are non - penetrating, which means they do not require drilling holes in the roof, making them a good option for roofs where penetrations are not allowed or for those concerned about roof leakage.

Penetrating Mounts: These mounts are attached to the roof by drilling holes and using bolts or screws. They provide a more secure installation but require proper waterproofing to prevent leaks. Penetrating mounts are often used for roofs that can support the additional weight and where a more stable installation is needed.

Flush Mounts: Flush mounts are designed to install the solar panels flat against the roof surface. They are aesthetically pleasing and can be a good choice for buildings where the appearance of the roof is important. However, they may not provide as much tilt angle for optimal sunlight absorption as other mounting systems.



Inverter



String Inverters: String inverters are the most common type of inverter used in flat roof solar panel kits. They are connected to a string of solar panels and convert the direct current (DC) generated by the panels into alternating current (AC) that can be used to power household appliances or fed back into the grid.

Microinverters: Microinverters are installed at the individual panel level, each converting the DC output of a single solar panel into AC. This allows for more flexibility in system design and can improve the overall performance of the solar system, especially in cases where some panels may be shaded or have different output characteristics.

Power Optimizers: Power optimizers are often used in conjunction with string inverters. They are installed between each solar panel and the string inverter and help to maximize the power output of each panel by adjusting the voltage and current.



Wiring and Connectors



Wiring: The wiring in a flat roof solar panel kit is used to connect the solar panels to the inverter and other components of the system. It is important to use high - quality, weather - resistant wiring to ensure the safety and reliability of the system.

Connectors: Connectors are used to join the wiring and other components together. They should be waterproof and have a secure connection to prevent electrical arcing and other safety hazards.



Monitoring and Control System



Monitoring System: A monitoring system allows you to track the performance of your solar panel system in real time. It can provide information such as the amount of electricity generated, the efficiency of the panels, and any potential issues or faults in the system.

Control System: The control system is used to manage the operation of the solar panel system. It can include features such as automatic shutdown in case of emergencies, voltage and current regulation, and grid connection management.
