HDG Q235 Steel Ground Screw
Items:HDG Q235 Steel Ground Screw
Main Material: Hot-galvanized Steel Q235
Lead Time: 7-10 days
OEM & Sample: Available
Supply Capacity: 3000 PCS/DAY
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

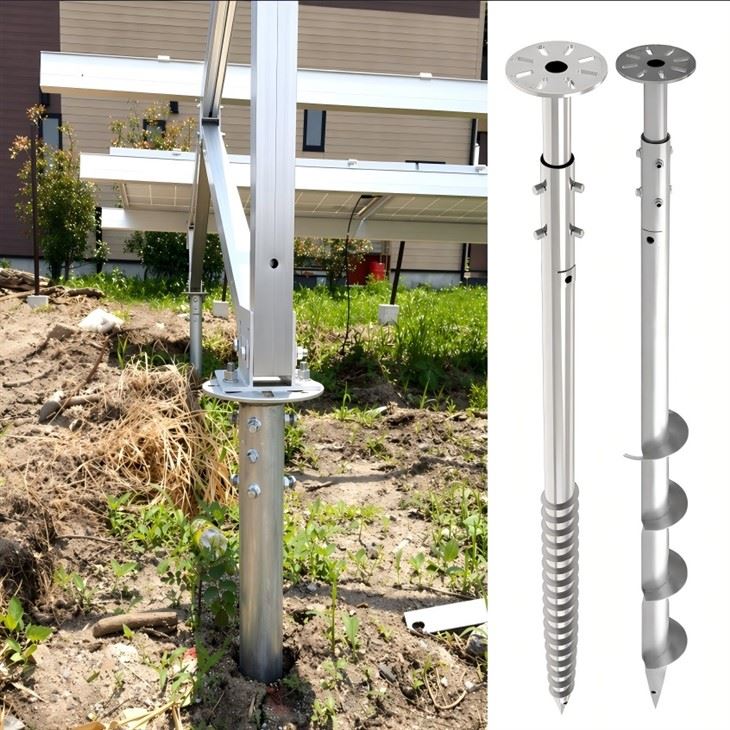

HDG Q235 Steel Ground Screw: Concrete-Free Foundations Built to Last
Secure your ground arrays with our high-tensile HDG Q235 Steel Ground Screw. Forged from certified Q235B structural carbon steel and treated with a heavy hot-dip galvanized barrier, this rock-solid pile replaces traditional concrete foundations, driving down on-site labor and Balance of System (BOS) costs.
- Premium Q235 Steel: Delivers exceptional mechanical yield strength and torsional resistance during high-torque hydraulic driving.
- Heavy-Duty HDG Protection: Coated to ISO 1461 standards (average thickness≥85μ ) for 25+ years of zero-maintenance underground service life.
- Zero Curing Downtime: Instant mechanical loading allows immediate racking assembly, cutting weeks off your construction schedule.
- All-Weather Adaptability: Anchors flawlessly into sand, clay, and gravel without land grading or soil disruption.
- Zero MOQ Friction: Maximum procurement freedom with No Minimum Order Quantity (No MOQ) on standard and customized piles.
 |
 |
 |
 |
Product Specifications
| Parameter Item | Technical Specifications |
| Product Name | HDG Q235 Steel Ground Screw |
| Material Base | Certified Structural Steel (Q235B) |
| Anti-Corrosion | Hot-Dip Galvanized (HDG) average thickness ≥85μ |
| Dimensions | Diameter: Ф76mm/Ф89mm/Ф114mm |
| Length Range | 1000mm to 3000mm (Customizable) |
| Flange Options | Round, Square, Hexagonal, U-Shape, or Adjustable |
| Design Standards | ASCE/SEI 7, AS/NZS 1170.2, Eurocode 1 |
| Lifespan / Warranty | 25+ Years Lifespan / 15-Year Structural Warranty |
| MOQ Constraint | No MOQ (Zero Minimum Order Quantity) |
Certifications
 |
 |
As one of the leading manufacturers in the field of solar panel roof mount, we own hundreds of certificates such as ISO9001, Structural design certificate, MCS certificate, and so on. Our goods could also pass the test per our clients' request.
About Grengy
Xiamen Grengy Photovoltaic Technology Co., Ltd., founded in 2007, is a trusted renewable energy partner. We specialize in designing and manufacturing high-performance PV mounting systems for safety, durability, and maximum energy output. Our dedicated R&D team provides customized solutions for global residential, commercial, and utility-scale projects.
