fixed ground solar mounting structure

For more details,pls email:rukin@grengysolar.com

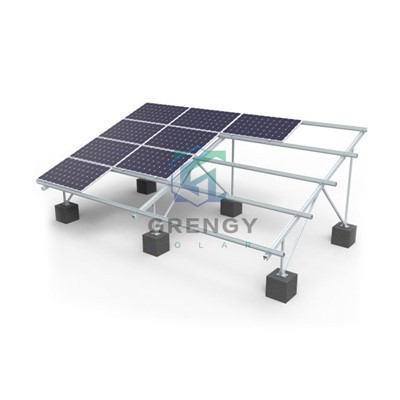

A fixed ground solar mounting structure is a framework designed to securely hold solar panels in a stationary position on the ground. Here are its main characteristics and details:

Components and Design

• Support Posts: These are vertical columns that provide the main structural support. They are typically made of materials like galvanized steel or aluminum alloy. Galvanized steel offers high strength and durability, while aluminum alloy is lighter and has good corrosion resistance. The height and diameter of the support posts are determined based on factors such as the size and weight of the solar panels, the local wind and snow loads, and the desired tilt angle of the panels. For example, in an area with high wind speeds, thicker and taller support posts may be required to ensure the stability of the structure.
• Crossbars and Rails: Crossbars connect the support posts horizontally and provide a platform for attaching the solar panels. Rails are attached to the crossbars and are used to clamp the solar panels in place. These components are usually made of the same materials as the support posts and are designed to have sufficient strength to bear the weight of the panels and withstand any external forces. The spacing between the crossbars and rails is adjusted to fit the specific dimensions of the solar panels being used.
• Tilt Mechanism (if adjustable): Some fixed ground solar mounting structures have an adjustable tilt mechanism. This allows the angle of the solar panels to be changed to optimize their exposure to the sun throughout the year. The tilt mechanism can be a simple manual adjustment using bolts and slots, or it can be a more sophisticated motorized system that automatically adjusts the angle based on the position of the sun. For instance, in a region with significant seasonal variation in the sun's angle, an adjustable tilt mechanism can significantly increase the overall energy output of the solar panel system.

Installation Considerations

• Foundation: The type of foundation used depends on the soil conditions and the size of the mounting structure. Common foundation options include concrete footings, helical piles, and ground anchors. Concrete footings are poured into excavated holes and provide a solid and stable base. Helical piles are screwed into the ground and are suitable for softer soil types. Ground anchors are driven or drilled into the ground and are used to secure the support posts. The depth and size of the foundation are calculated to ensure that it can support the weight of the structure and withstand any uplift or lateral forces caused by wind or other environmental factors.
• Alignment and Leveling: Precise alignment and leveling of the mounting structure are essential to ensure that the solar panels are installed at the correct angle and orientation. Specialized tools such as laser levels and transit levels are used to achieve accurate alignment. Even a small deviation from the correct angle can result in a significant reduction in the energy output of the solar panel system.

Advantages

• Stability: Once properly installed, a fixed ground solar mounting structure provides a stable platform for the solar panels, allowing them to withstand various environmental conditions. The solid foundation and sturdy construction ensure that the panels remain in place and continue to generate electricity even during strong winds, heavy snowfall, or other extreme weather events.
• Flexibility in Panel Selection: It can accommodate a wide range of solar panel sizes and types. The adjustable rails and clamping mechanisms can be configured to fit different panel thicknesses and widths, allowing for the use of the most suitable and efficient solar panels available in the market. This flexibility also enables easy upgrades or replacements of panels in the future as new and more advanced technologies emerge.
• Easy Maintenance: The ground-mounted design makes it relatively easy to access the solar panels for maintenance and cleaning. Technicians can easily walk around the structure and perform tasks such as inspecting the panels for damage, cleaning off dirt and debris, and checking the electrical connections. This ease of access helps to ensure the long-term performance and reliability of the solar panel system and reduces the cost and downtime associated with maintenance.
