PV Double Poles Solar Racking
Items: PV Double Poles Solar Racking
Main Material: Aluminum 6005-T5 & Stainless steel 304 & Q235
Lead Time: 7-10 days
OEM & Sample: Available
Supply Capacity: 5MW/Week
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Details

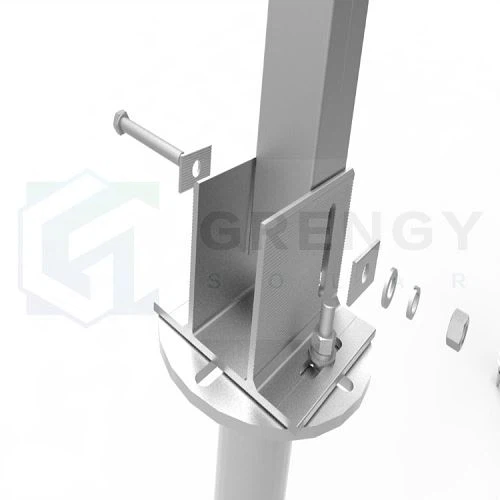

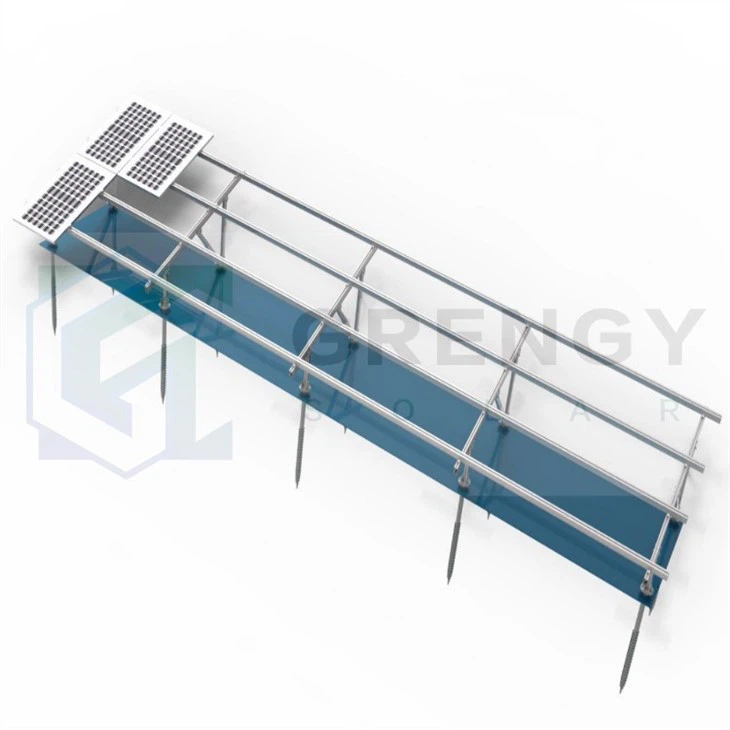

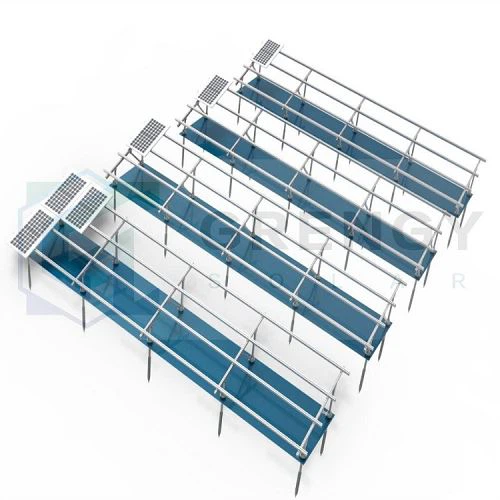

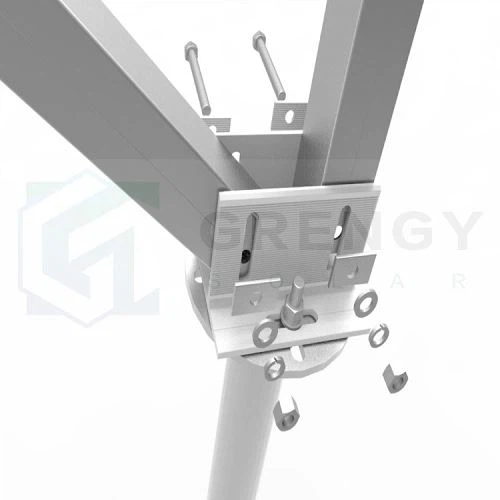

PV Double Poles Solar Racking is one of our two -pole installation system products. One of the characteristics of this installation structure is that it is very flexible and has the ability to apply in various terrain, especially for the slope tilt west and northwest. This vertical row dual -polar solar structure structure is simple, easy to install, and is welcomed by customers such as Japan. Similarly, we also provide two foundations for you to choose from, one is the foundation of the cement and the other is the ground screw foundation. The front legs and hind legs are composed of stainless steel rods and ground screws. The height of the legs can be adjusted as needed.
For more details, pls email: rukin@grengysolar.com
 |
 |
 |
 |
Product Parameters
|
Installation: Open field |
Standard: SGS, AS/NZS 1170, ASCE 7-10, JIS2017 |
|
Wind load: 60m/s |
Ground clearance: 400-2500mm |
|
Snow load: 1.4KN/m² |
Installation angle: 0-45° |
|
Material: Aluminum |
Anti-corrosive: Anodized |
|
Warranty: 15 years warranty; 25 years service life |
Module orientation: Horizontal |
FAQ
-
Q: Can we visit your factory before place the order?
A: Yes, Very welcome that must be nice to set up good relationship for business. -
Q:Do you offer OEM service and can you produce as our drawings?
A: Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawing. -
Q: What are your terms of payment?
A: T/T or L/C
Brief introduction about our factory
Since 2007, Xiamen Huapuxin Energy Technology Co., Ltd. was established in the southeast of China -- Xiamen, a beautiful seaside city. Grengy strives to establish a long-term, mutually beneficial relationship and cooperation with worldwide partners, with excellent solar panel roof mount, solar ground mounting, solar carport products etc, well-known brand names, competitive prices and good service. Our products are exported to more than 100 countries and regions of the world, including Japan, Germany, USA, India, Thailand, South Africa, Australia etc. According to different kinds of installation sites, we are able to provide tailored, cost-effective roof/ ground/carport/pole mounting system solutions. Besides, the components of brackets are also available, such as roof hooks, clamps, flashing, triangle kits, adjustable legs, ground screw piles etc.
