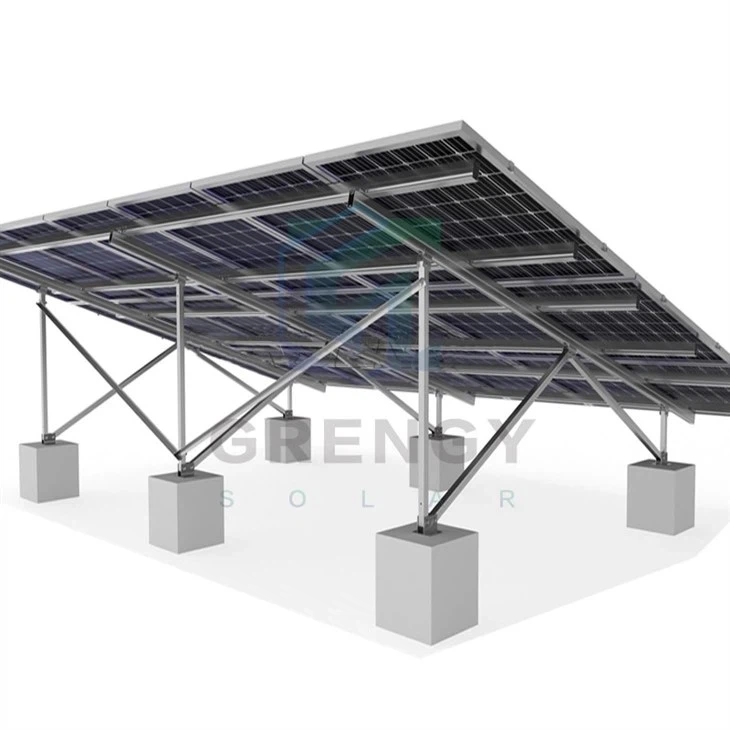

Ground Mounted Photovoltaic Bracket

Xiamen Grengy Photovoltaic Technology Co., Ltd

Founded in 2007. It has a professional R&D team and 150 employees. Specializing in PV products like ground and roof brackets, it offers customized solutions. With business in over 100 countries, it holds multiple patents and certifications such as UL, TUV, CE, being a leading exporter.

Professional team

Our professionals have in-depth knowledge and rich experience in the field of photovoltaic technology, enabling the company to keep up with the international advanced level in product R & D and innovation

Certifications and Standards Compliance

The company's reputation is enhanced by its compliance with a wide range of international and domestic certifications. Having successfully passed UL, TUV, CE, CQC, SAA, AS/NZS1170

1000+

Projects completed

100+

Exported Countries

10GW+

Total Installed Capacity

60+

Patents

For more details,pls email:rukin@grengysolar.com

Ground - Mounted Photovoltaic Bracket has the following features:

1. Structural Stability
These brackets are designed to provide a stable base for photovoltaic panels. They are usually made of high - strength materials such as galvanized steel or aluminum alloy. The material selection and structural design ensure that the brackets can withstand various external forces, including wind loads, snow loads, and even seismic forces in some cases. For example, in windy regions, a well - designed ground - mounted bracket can keep the solar panels firmly in place, withstanding gusts of up to a certain speed (such as 120 km/h or more depending on the design standard) without being damaged or displaced.

2. Adjustable Tilt Angle
One of the important features is the adjustability of the tilt angle. The tilt angle of the photovoltaic panels can be adjusted according to the geographical location and the season. This is crucial for maximizing the solar energy capture efficiency throughout the year. For instance, in the northern hemisphere, a steeper tilt angle may be preferred in winter to capture more sunlight when the sun's altitude is relatively low, while a shallower angle can be used in summer. The adjustment range of the tilt angle of ground - mounted photovoltaic brackets usually varies from 10 to 60 degrees or more, depending on the specific model and design requirements.

3. Easy Installation and Maintenance
Ground - mounted photovoltaic brackets are generally designed to be easy to install. They usually come with pre - drilled holes and clear installation instructions, allowing installers to quickly assemble and install them on the ground. In terms of maintenance, their ground - level position makes it relatively convenient for technicians to access the panels and brackets. For example, it is easier to clean the panels, check for loose connections, or perform other routine maintenance tasks compared to some rooftop installations where access may be more difficult due to height and other factors.

4. Durability and Corrosion Resistance
Given that they are exposed to the outdoor environment for a long time, these brackets have excellent durability and corrosion - resistance properties. The materials used, such as galvanized steel, form a protective layer on the surface that can prevent rust and corrosion caused by rain, humidity, and other environmental factors. Some high - end brackets may also use advanced coating technologies or alloy materials to further enhance their anti - corrosion ability and service life. Their service life can generally reach 20 - 30 years or more under normal environmental conditions.

5. Compatibility
Ground - mounted photovoltaic brackets are designed to be compatible with different types of photovoltaic panels. They can accommodate various panel sizes, thicknesses, and types (such as monocrystalline silicon, polycrystalline silicon, or thin - film panels). This flexibility allows for a wide range of applications and makes it easier for system integrators to select and combine components according to specific project requirements. For example, a well - designed bracket can support panels with dimensions ranging from 1.6m x 0.99m to larger - sized commercial - grade panels without any problem.

6. Good Ground Fixing Performance
The ground - fixing part of the bracket is carefully designed to ensure a firm connection with the ground. It may use methods such as ground anchors, concrete foundations, or screw piles. Ground anchors are suitable for softer soil types, and concrete foundations provide a more stable base for heavier installations. Screw piles can be quickly installed and removed, which is convenient for some temporary or movable photovoltaic installations. The good ground - fixing performance ensures that the entire photovoltaic system remains stable and reliable during operation.
