Stainless Steel Solar Mounting Hook
Item:Stainless Steel Solar Mounting Hook
wind speed：60m/s
snow load ：1.6kn/m2
daily capacity：100000pcs
certificated：CE & ISO9001
Warranty：15 years
service life：25 years
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Professional team: Specializing in the innovation, engineering, and production of premium photovoltaic mounting systems
Equipped with advanced production machinery and a strict quality management system
For more details.pls email:rukin@grengysolar.com
Premium SUS304 Metallurgy: Forged exclusively from high-strength Stainless Steel (SUS304/A2-70), providing elite resistance against pitting, chemical atmospheric corrosion, and rust streaking in coastal or industrial environments.
Precision Contoured Geometry:

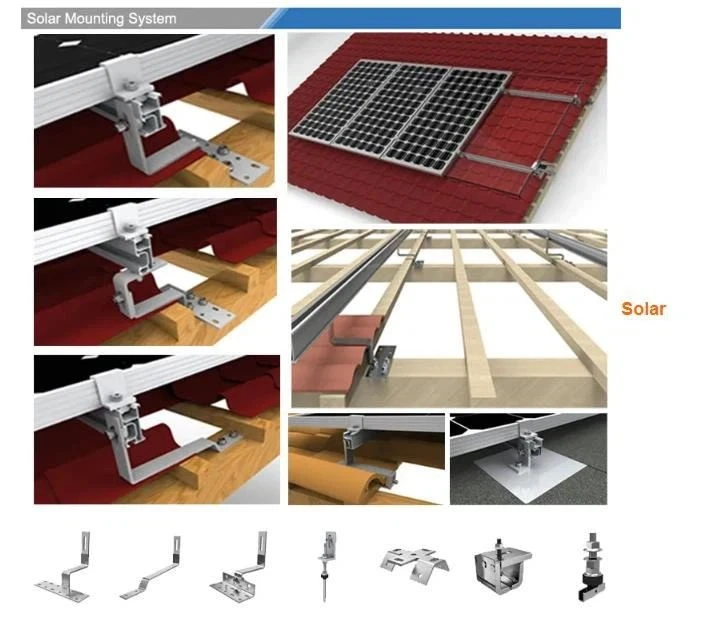

- Static Rigid Profiles: Engineered for low-clearance, high-load configurations like flat slate or asphalt shingle roofs.

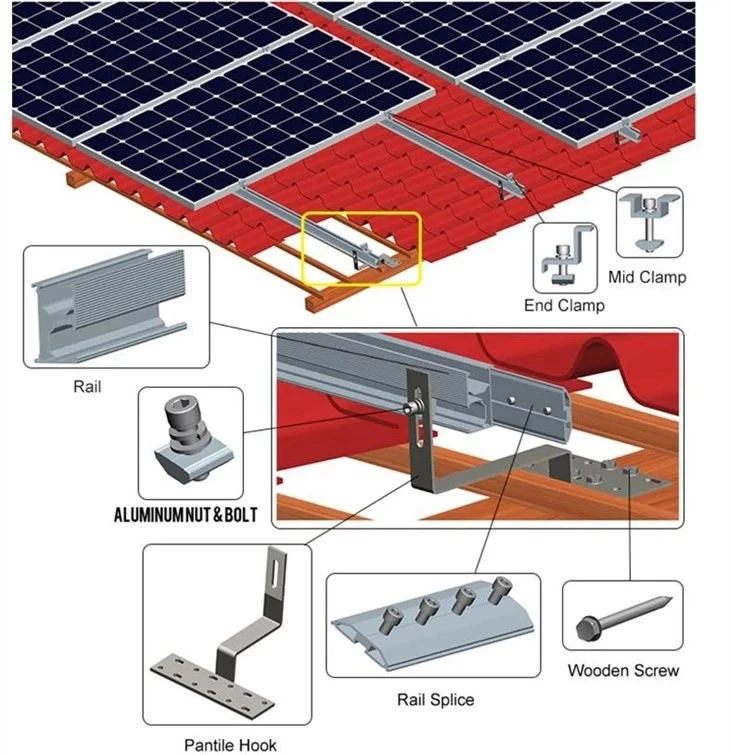

- Multi-Axis Adjustable Profiles: Featuring dual-slotted baseplates and vertical arm adjustment joints to easily clear deep Roman/Pantiles and uneven batten alignments.
High-Velocity Updraft Defense: Structurally optimized bend radii and thickened baseplates channel intense wind-uplift forces (up to 60m/s) and heavy snow loads safely into the building's primary framing.
Non-Invasive Roof Integration: The sleek, high-clearance throat design allows the hook to emerge from overlapping tile joints perfectly flush, eliminating localized pressure points to prevent tile cracking and subsequent water leaks.
Technical Performance Matrix
| Engineering Field | Product Specification Data |
| Product Classification | Stainless Steel Under-Tile Rafter Hook |
| Material Base | Premium Stainless Steel SUS304 / A2-70 |
| Surface Conditioning | Shot-Blasted, Acid-Pickled, and Passivated |
| Applicable Roof Profiles | Mediterranean Clay Tiles, Concrete Interlocking Tiles, Slate, Shingle |
| Adjustment Mechanics | Fixed Monoblock or Dual-Bolt Height/Lateral Adjustability |
| Ultimate Wind Threshold | 60 m/s (216 km/h) |
| Peak Snow Load Capacity | 1.4 kN/m² |
| Engineering Compliance | Structural integrity certified to AS/NZS 1170.2, Eurocode 1, ASCE 7-10 |
| Supply Flexibility | No MOQ Constraints (Tailored stamping runs for any project scale) |
| Design Lifespan | 25 Years |
