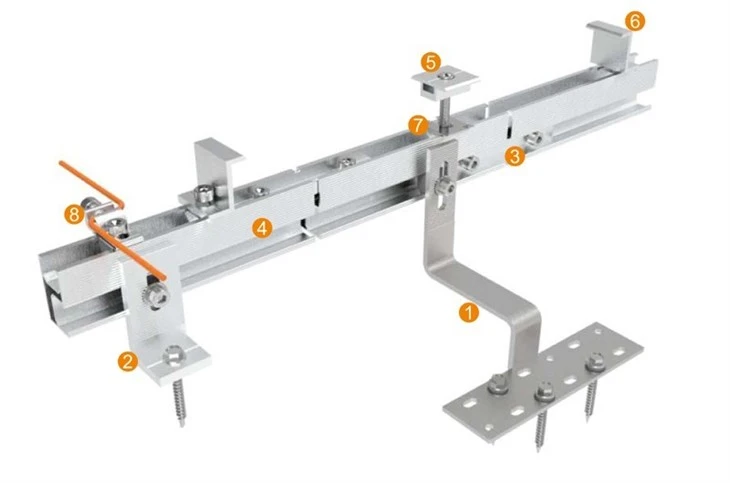

Solar Panel Roof Mounting Hook
Items: Solar Panel Roof Mounting Hook
Weight: 0.38-0.65 kg/pcs
Material: SUS 304/ Aluminum
Lead Time: 7-10 days
OEM & Sample: Available
Certification: CE/ISO9001
Warranty:15Years
Service:25Years
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Our address:
713 Zhonghengji Building, No. 223, Qishan North Road, Huli District, Xiamen
Phone/Whatsapp:
+86-15060743485
E-mail:
Key Engineering Benefits
High-Yield Alloys: Formed from premium Stainless Steel (SUS304) or structural-grade Aluminum (AL6005-T5) to prevent rust streaking, pitting, and structural degradation over decades of outdoor exposure.
Optimized Roof Contour Matching:
- Fixed Profile: Engineered for standard flat tile or asphalt shingle layouts requiring a clean, uniform elevation.
- Adjustable Height Option: Features slotted vertical or horizontal slide-plates to easily match uneven batten levels and deep Roman/Spanish tile contours.
Uplift & Shear Resistance: Structurally rated to counter intense localized wind-uplift pressures up to 60m/s and heavy alpine snow weights by optimizing the hook's bend radius and baseplate thickness.
Tile Integrity Protection: Ergonomically curved throat profiles allow the hook to clear the edge of overlapping tiles cleanly, eliminating pressure points that cause tile cracking or leaking.
Technical Parameters
| Technical Field | Product Performance Data |
| Component Name | Solar Panel Roof Mounting Hook / Rafter Bracket |
| Roof Compatibility | Interlocking Clay Tiles, Concrete Tiles, Slate, Asphalt Shingles |
| Material Base | Stainless Steel SUS304 / Structural Aluminum AL6005-T5 |
| Surface Armor | Acid-pickled & Passivated (SS) / Anodized Surface ≥10μ (Alu) |
| Adjustment Capacity | Rigid One-Piece Base or Multi-Bolt Height Adjustability |
| Wind Resistance Limit | 60 m/s (216 km/h) |
| Snow Load Threshold | 1.4 kN/m² |
| Structural Alignment | Compiles with AS/NZS 1170.2, Eurocode 1 (EN 1991), ASCE 7-10 |
| Supply Availability | No MOQ Requirements (Custom stamping for unique regional tile patterns) |
| Durability Horizon | 25 Years |
