Terrain-Adaptive ZAM Steel Ground Mounting System With Adjustable Foundation
Material: ZAM Steel
Max Wind Load: According to the request of the project
Max Snow Load: According to the request of the project
Solar Module Orientation: Portrait or Landscape
Application: Ground or Farm
Pre-assembled parts at the factory, fast and easy to install
OEM & Sample: Available
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Xiamen Grengy Photovoltaic Technology Co., Ltd., established in 2007, is a leading enterprise dedicated to the research and development (R&D), design, manufacturing, and sales of a wide range of photovoltaic bracket products.
large enterprise scale
→ Extensive product variety covering all specifications/models.
→ Solutions for diverse scenarios (utility-scale plants & rooftops).
standardized production
→ Unified specifications/models across the product line.
→ Ensures cost-effectiveness and broad applicability.
For more details, pls email:rukin@grengysolar.com

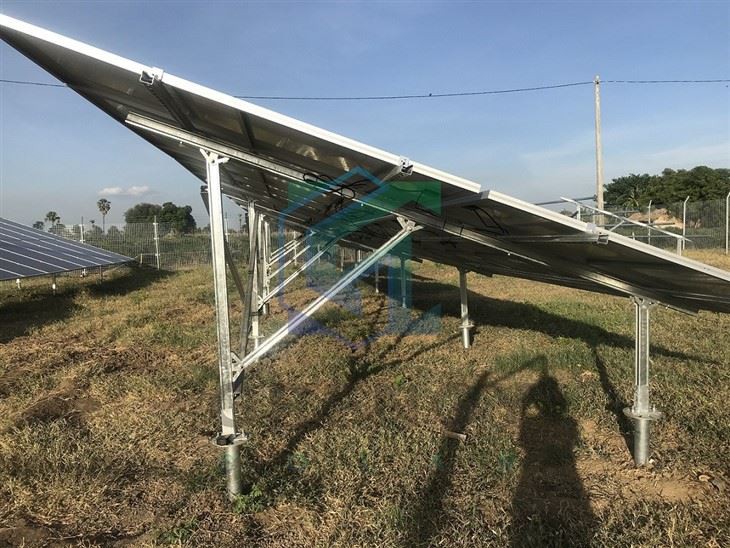

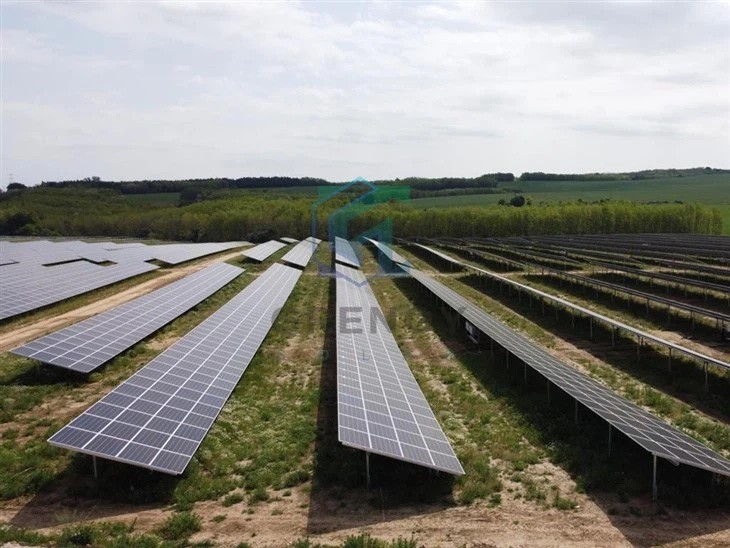

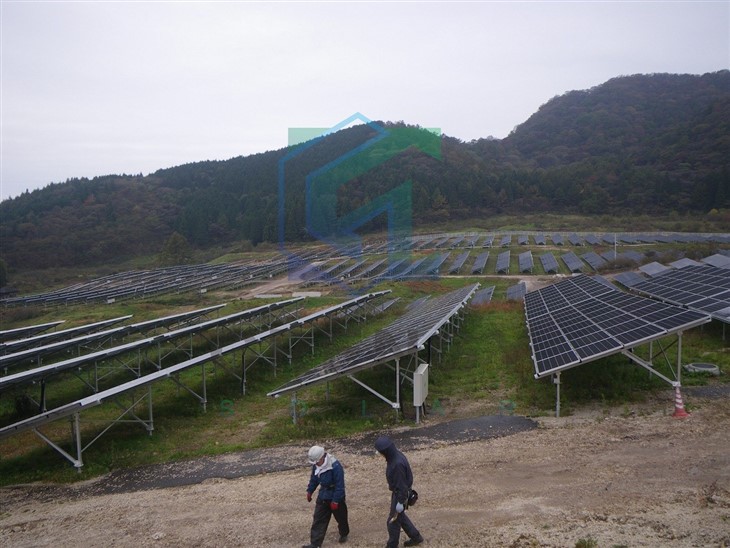

For utility projects situated on uneven, sloping, or technically challenging landscapes, the Terrain-Adaptive ZAM Steel Mounting System offers a sophisticated engineering solution. By combining the high-performance chemistry of Zinc-Aluminum-Magnesium steel with flexible structural joints and adjustable foundations, this system eliminates the need for costly land leveling and extensive civil works.
Key Adaptive Features
1. Multi-Axis Adjustability
Unlike rigid structures that require perfectly flat ground, terrain-adaptive systems utilize specialized connectors (such as U-clevises or ball-and-socket joints) to accommodate slopes:
- North-South Adaptability: Can manage gradients up to 20%–30% without structural modification.
- East-West Tolerance: Adjustable brackets allow for "stair-stepping" or continuous contour following on rolling hills.
2. Versatile Foundation Interfaces
To stabilize the ZAM superstructure, the system integrates with several adjustable foundation types depending on the soil report:

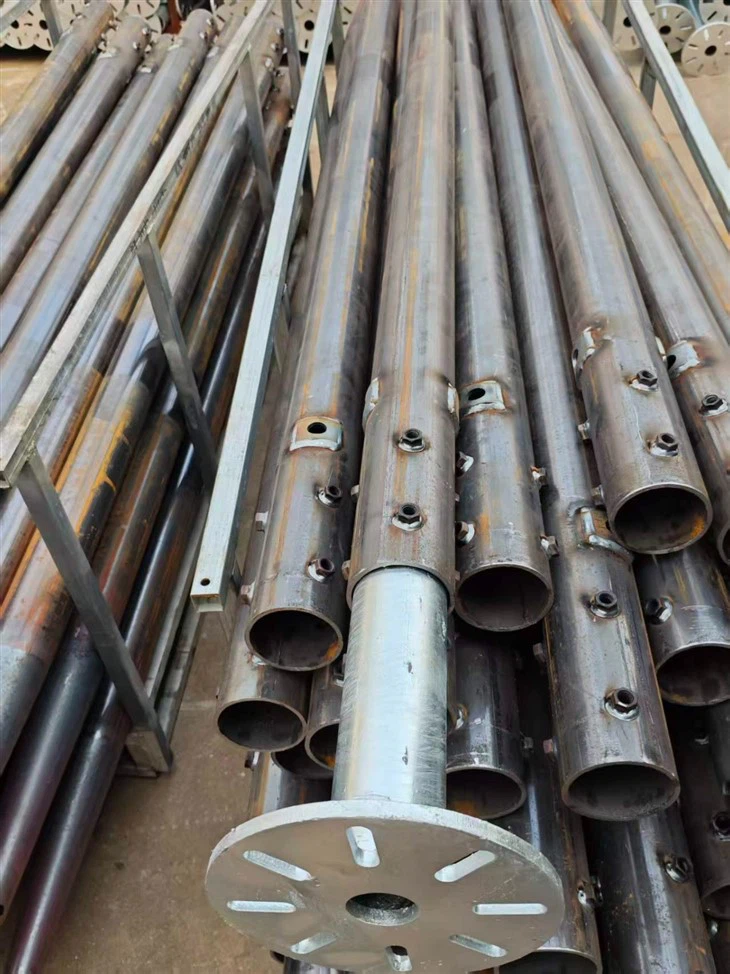

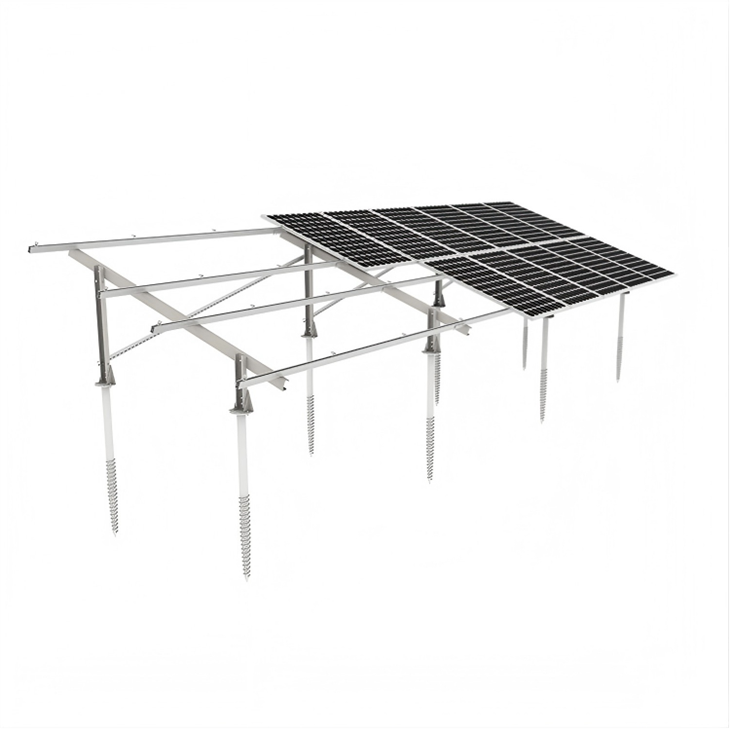

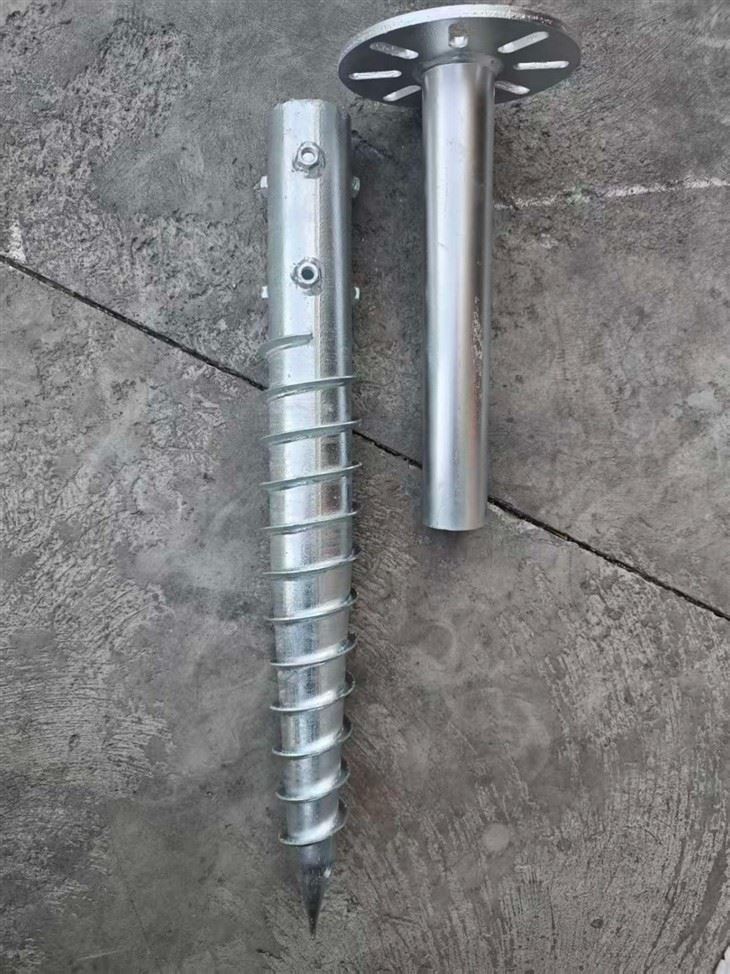

- Adjustable Ground Screws: Best for sandy or clay soils; the screw depth and height can be fine-tuned to create a perfectly level plane for the rails despite surface irregularities.
- Ramming Piles (C/U/H Profiles): High-speed installation using GPS-guided hydraulic rammers. The ZAM coating's hardness ensures the protective layer remains intact even when driven into rocky terrain.

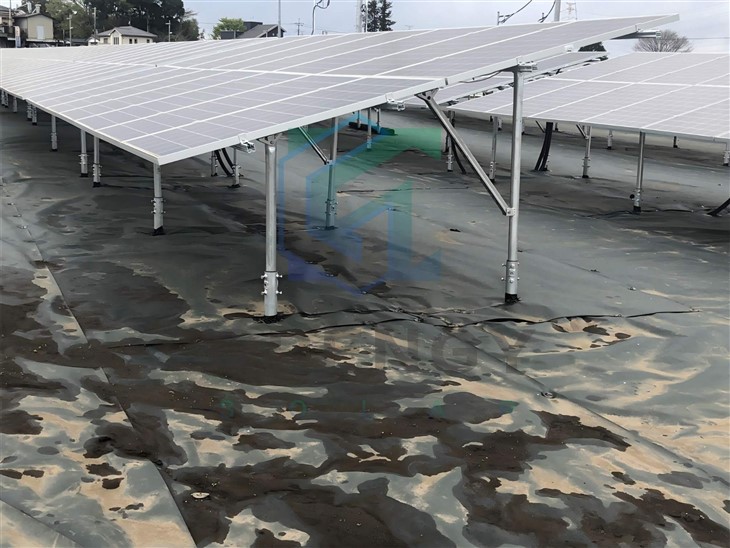

- Concrete Ballast with Leveling Shims: Used for brownfields or rocky sites where ground penetration is impossible.
Technical Performance & Terrain Capability
| Feature | Specification / Capability |
| Material Grade | High-Tensile ZAM Steel (S350GD - S450GD) |
| Slope Accommodation | Up to 30° (site-specific engineering) |

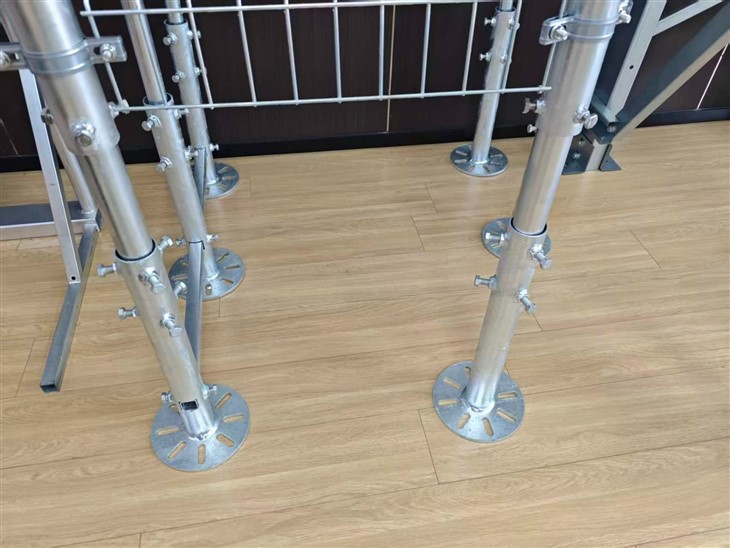

| Vertical Adjustment | ±150mm to 300mm height tolerance at the post-head |
| Wind Resistance | Designed for ASCE 7-16 or Eurocode 3 standards |
| Module Layout | 2-Portrait (2P) or 4-Landscape (4L) configurations |
