Corrosion-Resistant ZAM Coated Solar Racking System The Best Alternative To HDG
Material: ZAM Steel
Warranty：10 Years Warranty, Over 25 Years Service Life
Max Wind Load: According to the project's request
Max Snow Load: According to the project's request
Solar Module Orientation: Portrait or Landscape
Application: Ground or Farm
Pre-assembled parts at the factory, fast and easy to install
OEM & Sample: Available
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Zinc-Aluminum-Magnesium (ZAM) coated steel has revolutionized the utility solar sector as the primary alternative to traditional Hot-Dip Galvanized (HDG) steel. Its chemical composition and mechanical properties address the specific longevity and cost-efficiency demands of large-scale renewable energy infrastructure.
Why ZAM Outperforms HDG: While HDG has been the industry standard for decades, ZAM offers distinct chemical advantages that make it a superior choice for a 25- to 30-year asset life.
1. Superior Chemical Composition
- Traditional HDG relies on a pure zinc layer that acts as a sacrificial anode. ZAM, however, utilizes a ternary alloy (typically 6% Aluminum and 3% Magnesium).
- The Magnesium Effect: Magnesium is the "secret ingredient." It reacts with the environment to form a stable, dense protective film called simonkolleite, which is much harder and more resistant to chloride (salt) and ammonia than pure zinc oxide.
2. The "Self-Healing" Phenomenon
- One of the greatest weaknesses of HDG is that once the coating is breached by a scratch, drill hole, or cut edge, the underlying steel is immediately vulnerable to red rust.
- ZAM's Active Protection: When a cut edge is exposed, the magnesium and aluminum ions in the coating migrate across the exposed steel surface. They form a fine, tightly adherent alkaline film that "seals" the wound, effectively halting corrosion before it can spread.
3. Mechanical & Structural Durability
- Hardness: ZAM coatings are significantly harder than HDG coatings (approx. 100–160 HV vs. 30–70 HV for zinc). This makes the racking much more resistant to abrasion during transport and assembly.
- Coating Consistency: Unlike HDG, which can have "zinc tears" or uneven pooling that interferes with bolt-hole alignment, ZAM is produced via a continuous galvanizing line. This results in a perfectly uniform thickness and a smooth finish that accelerates installation.
For more details, pls email: rukin@grengysolar.com
Comparative Analysis: ZAM vs. HDG
| Feature | Hot-Dip Galvanized (HDG) | ZAM Coated Steel |
| Corrosion Rate | High in coastal/acidic soils | 5–10x slower than HDG |
| Edge Protection | Requires manual touch-up paint | Self-healing (no touch-up needed) |
| Environmental Impact | High energy use; zinc runoff | Lower energy; stable coating |
| Installation Speed | Moderate (potential fitment issues) | High (precise tolerances) |
| Weight | Heavier due to a thick zinc layer | Lighter with higher-strength steel grades |

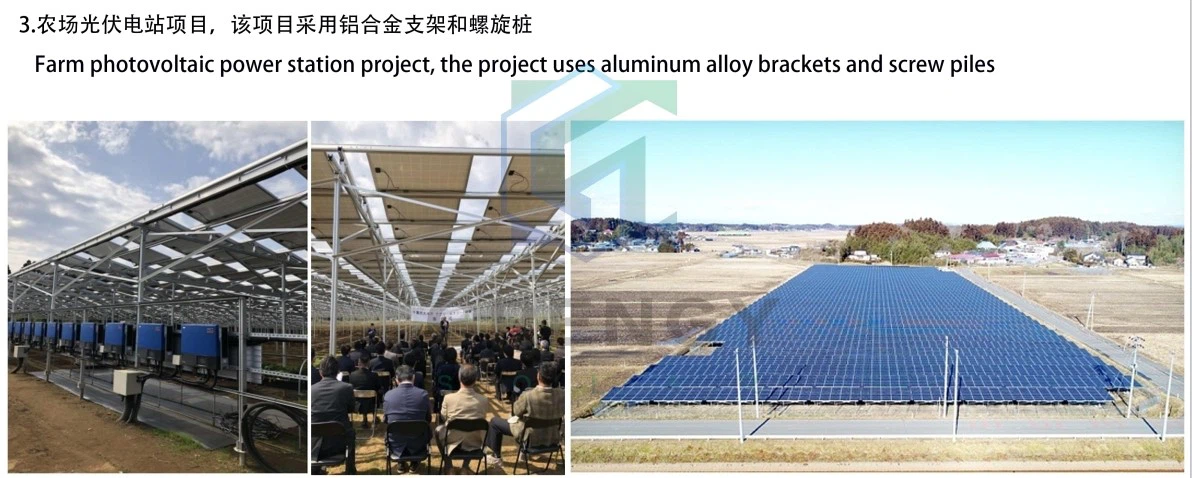

Projects View
