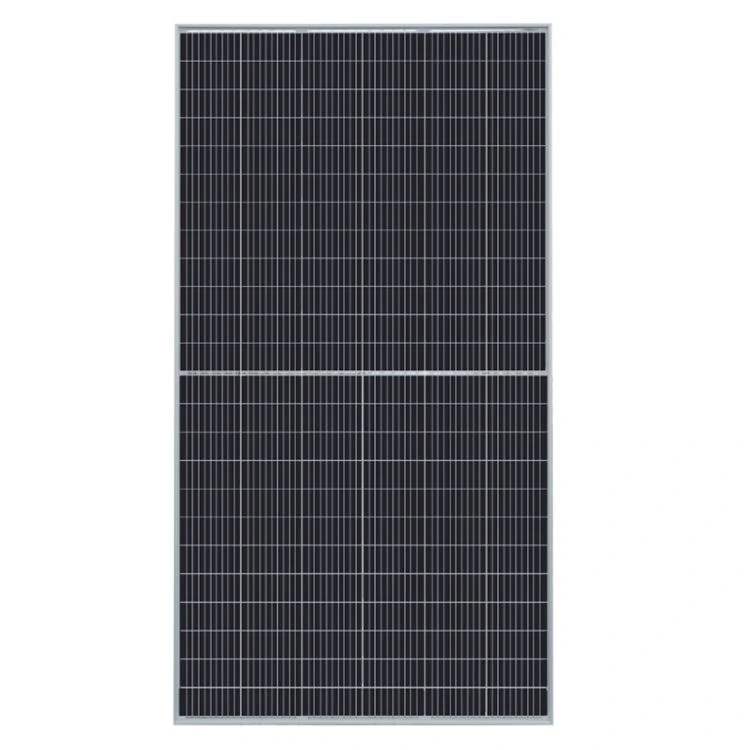

Mono Half-cut Single/double Glass Module
Items: Mono half-cut single/double glass module
Cell: Mono
No. Of cells: 144 (6X24)
Rated maximum Power (Pmax): 540W
Maximum efficiency: 20.8%
Junction box: IP68
Operating temperature: -40°C ~ +85°C
Packaging: 31 pcs/pallet
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Details

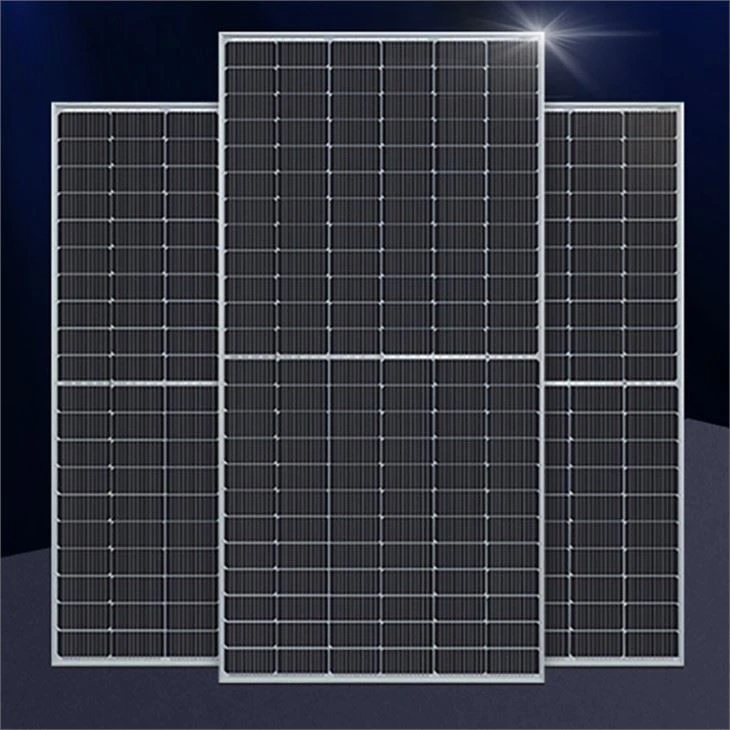

Mono half-cut single / double glass module, assembled with multi-busbar PERC technique and half-cut structure, which can not only absorb the energy from the front of the module, but also absorb the reflected light and the scattered light from the back, offering the advantages of higher power output, reducing shading effect on the energy generation, enhance the mechanical load bearing capacity as well. Using the mono single/double glass module can help save 6-8% of the Levelized Cost of Energy (LCOE), save 6% of logistics cost, save 7% cable cost, 8% bracket cost an 9% labor cost.

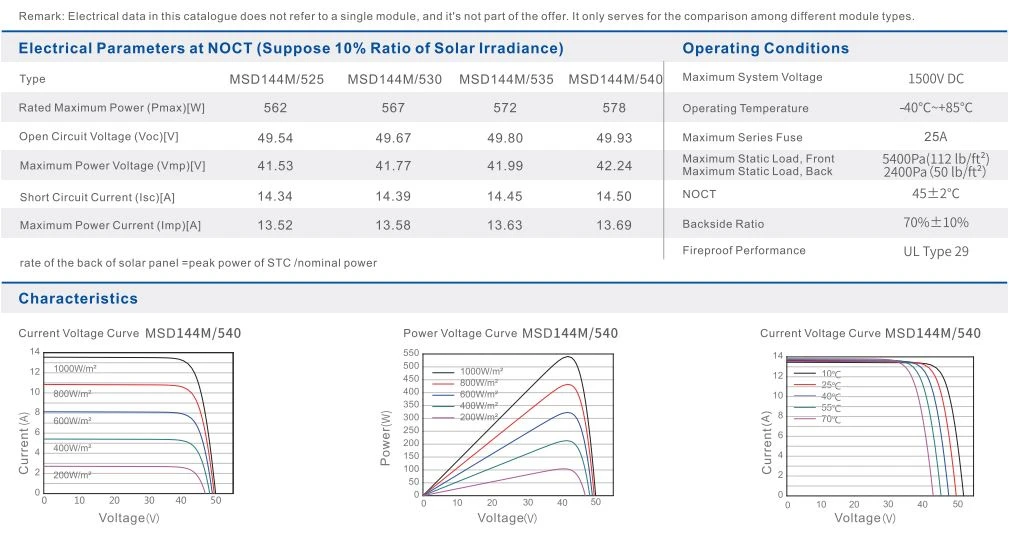

Product Specifications
Certifications
IEC61215, IEC61730
l ISO9001:2015 Quality management systems
l ISO45001: Environment management systems
l ISO45001: 2018 Occupational health and safety management systems
First-class quality assurance
l 10 year warranty for material and technology
l 25 year linear power output warranty
Product Specifications
Brief introduction about our factory
Grengy strives to establish a long-term, mutually beneficial relationship and cooperation with worldwide partners, with excellent solar panel roof mount, solar ground mounting , solar carport products etc, well-known brand names, competitive prices and good service. We are looking forward to being your most professional, reliable and valuable supplier of PV Mounting System and solar Components in China.
