Solar Panel Mounting Kit For Tile Roof

Xiamen Grengy Photovoltaic Technology Co., Ltd

Founded in 2007. It has a professional R&D team and 150 employees. Specializing in PV products like ground and roof brackets, it offers customized solutions. With business in over 100 countries, it holds multiple patents and certifications such as UL, TUV, CE, being a leading exporter.

Professional team

Our professionals have in-depth knowledge and rich experience in the field of photovoltaic technology, enabling the company to keep up with the international advanced level in product R & D and innovation

Certifications and Standards Compliance

The company's reputation is enhanced by its compliance with a wide range of international and domestic certifications. Having successfully passed UL, TUV, CE, CQC, SAA, AS/NZS1170

1000+

Projects completed

100+

Exported Countries

10GW+

Total Installed Capacity

60+

Patents

For more details,pls email:rukin@grengysolar.com

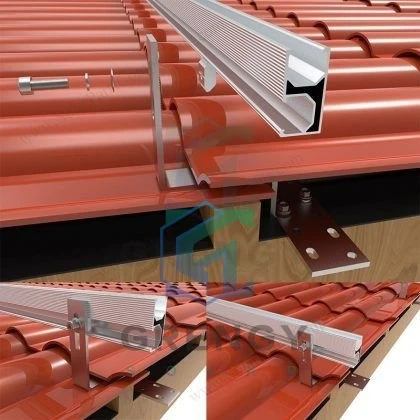

A solar panel mounting kit for tile roofs is a specialized set of components designed to securely attach solar panels to a tiled roofing surface. Here are its key elements:

Mounting Brackets

• These are the primary components that interface with the tiles. There are different types, such as tile hooks or tile clamps. Tile hooks are shaped to fit under or over the individual tiles, gripping them firmly without causing damage. They're often adjustable to account for different tile thicknesses and profiles. Tile clamps, on the other hand, work by clamping onto the edges of the tiles, providing a stable connection point. The brackets are typically made of durable, corrosion-resistant materials like aluminum or stainless steel to withstand outdoor weather conditions for decades.

Rails

• Once the mounting brackets are in place, rails are attached to them. These are long, straight bars, usually made of galvanized steel or aluminum. The rails create a flat, level platform on which the solar panels can be mounted. They ensure that the panels are properly aligned, facilitating a seamless installation process and optimal energy capture. The length of the rails can vary depending on the size of the solar panel array, and they may come in pre-cut or adjustable lengths.

Flashing

• Flashing is a crucial waterproofing element. It is placed around the mounting points and any areas where the solar panel system penetrates the roof. Made of materials like lead, copper, or synthetic rubber, flashing prevents water from seeping under the tiles and into the roof structure. It diverts rain, snowmelt, and moisture away from vulnerable areas, safeguarding the integrity of the roof and preventing leaks that could lead to costly water damage.

Fasteners and Seals

• High-quality, rust-resistant fasteners, such as stainless steel screws, are used to attach the various components together. These fasteners need to have a tight grip, especially considering the wind loads and thermal expansion/contraction that solar panels on a roof will experience. Seals, often made of silicone or rubber, are applied at joints and connections to further enhance waterproofing. They fill in any small gaps, creating an airtight and watertight seal, which is essential for long-term roof health.

Base Plates or Feet

• These are the parts of the kit that directly support the solar panels. They attach to the rails and provide a stable, even surface for the panels to rest on. Base plates may have built-in leveling mechanisms, allowing installers to make minor adjustments to ensure the panels are perfectly horizontal. This helps in maximizing sunlight absorption and the overall efficiency of the solar power system.

Advantages

• Roof Compatibility: Specifically engineered for tile roofs, these kits ensure a proper fit without the need to modify or damage the existing roofing tiles significantly.
• Durability: With materials selected for their resistance to corrosion, weathering, and wear, the mounting kit can last as long as the solar panels themselves, typically 20 - 30 years.
• Waterproofing: The inclusion of flashing and seals protects the roof from water intrusion, maintaining the roof's structural integrity over time.
