Solar PV Grounding Lug
Items: Solar PV Grounding Lug
Main Material: Aluminum, & Stainless Steel 304
Lead Time: 7-10 days
OEM & Sample: Available
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1. Product Details: Solar PV Grounding Lug
System Function & Principle

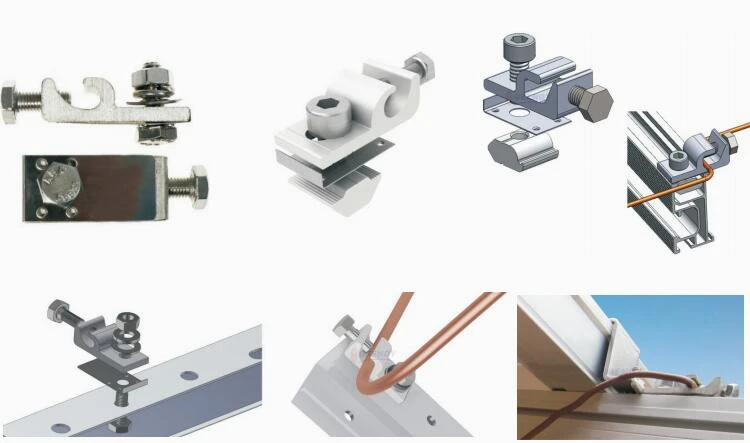

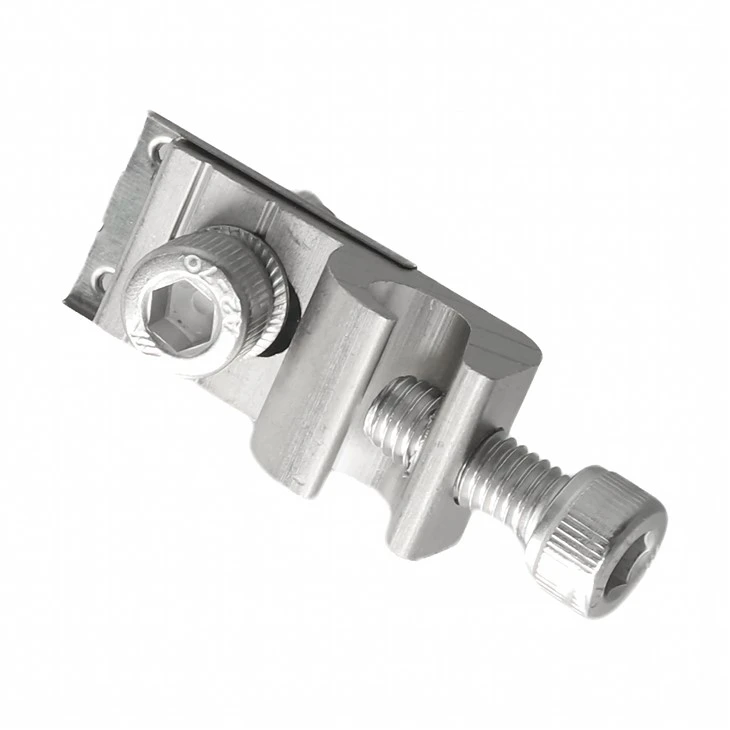

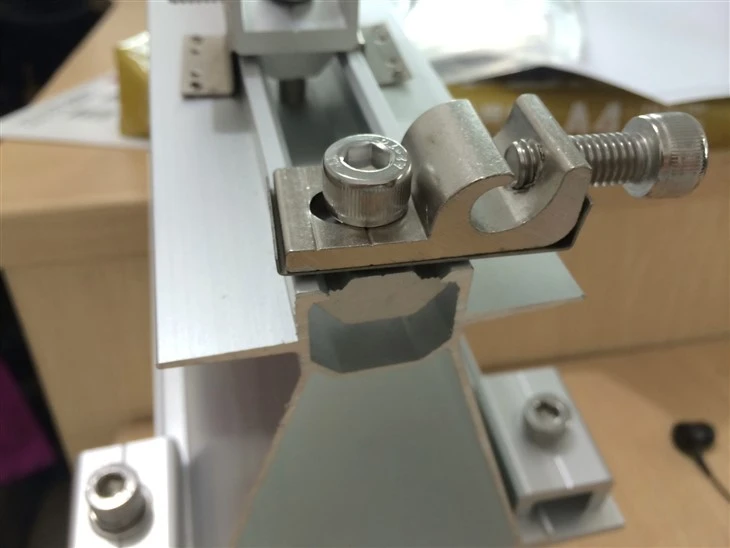

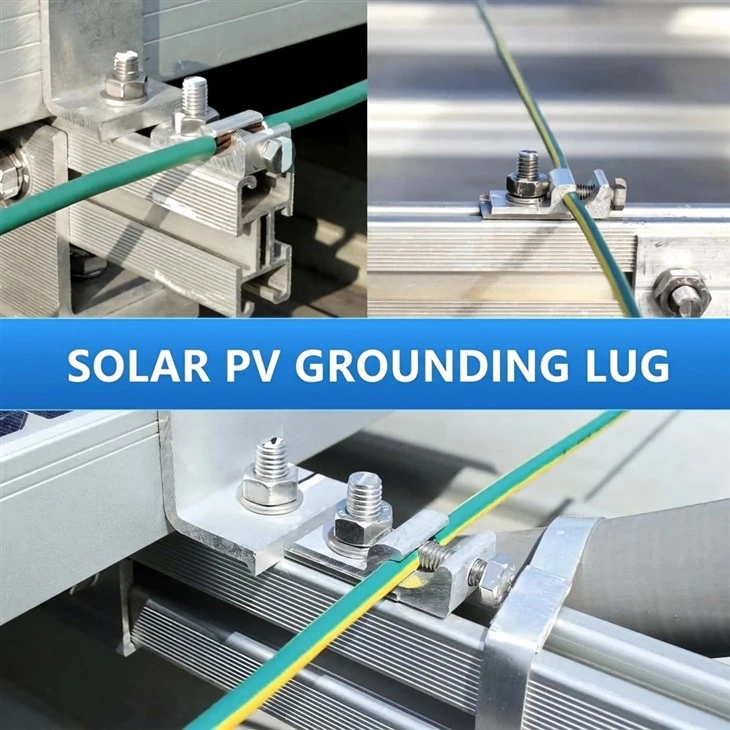

The Solar PV Grounding Lug serves as the primary terminal connection point that transitions an entire solar array from rail-level bonding to the main station ground. Mounted at the ends or along strategic points of aluminum racking rails, it securely anchors copper or aluminum grounding conductors (equipment grounding conductors / EGC), ensuring a safe, continuous, low-impedance path to earth for lightning protection and electrical fault currents.
For more details,pls email:rukin@grengysolar.com
2. Product Features & Technical Highlights
- Dual-Material Durability: High-strength AL6005-T5 aluminum body with SUS304 stainless steel hardware.

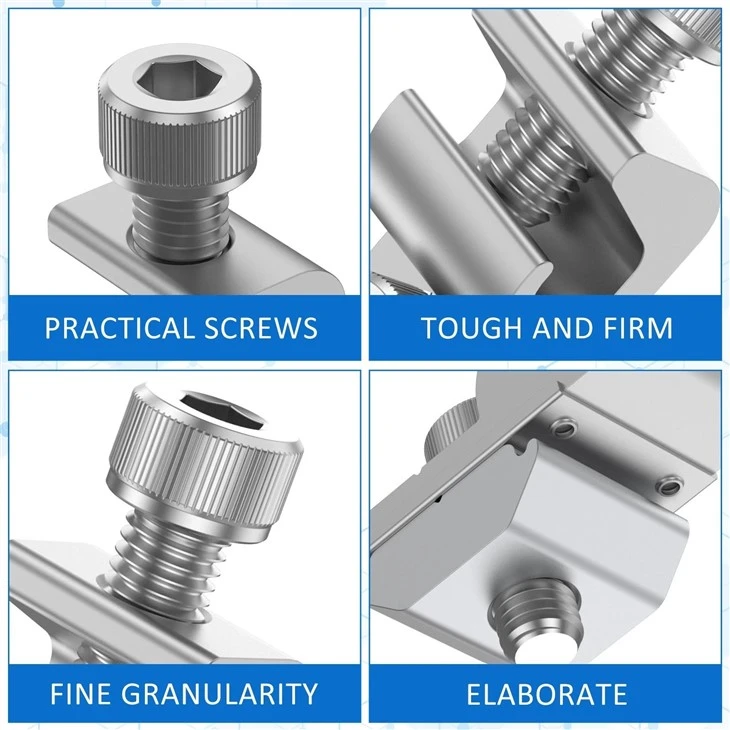

- Instant Rail Bonding: Built-in stainless plate / sharp teeth cut through rail anodization for low electrical resistance.
- Wide Wire Range: Lay-in channel fits 14 AWG to 4 AWG solid or stranded copper/aluminum wire.
- Galvanic Isolation: Tin-plated/stainless interface prevents galvanic corrosion between copper wires and aluminum rails.
3. Technical Parameters
| Parameter | Specification |
| Lug Body Material | High-Strength Anodized AL6005-T5 Aluminum / Tin-Plated Copper |
| Hardware Material | SUS304 Stainless Steel (A2-70) Screws & Washers |
| Compatible Wire Range | 14 AWG to 4 AWG ($2.5\text{ mm}^2 \text{ to } 25\text{ mm}^2$) Solid/Stranded Cu |
| Rail Fastening Method | T-Bolt, Channel Nut, or M8 Hex Cap Bolt |
| Electrical Resistance | < 0.1 Ω |
| Operating Temperature | -40 C°to +90 C° |

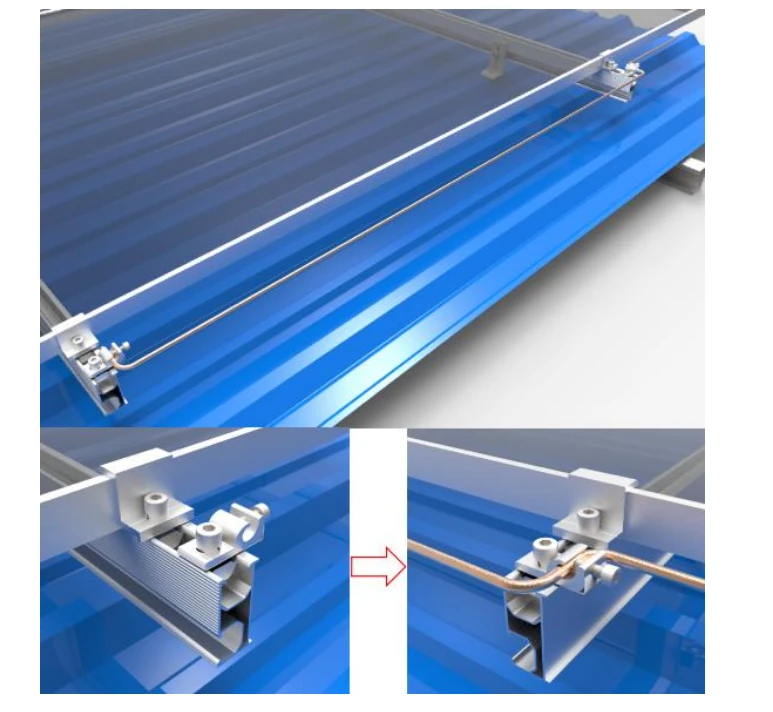

| Applicable Systems | Ground Mount, Commercial Flat Roof, Pitched Roof, Carports |
