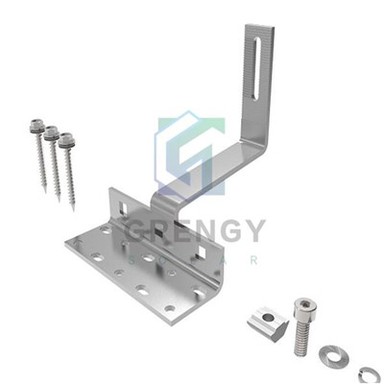

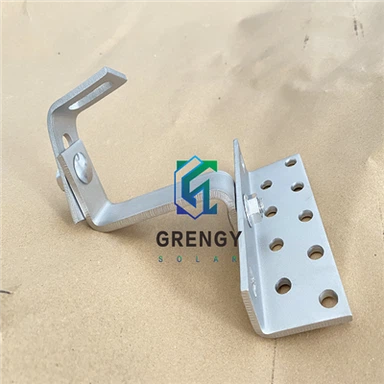

AL6005-T5 Aluminum Solar Roof Hook For Tile Roofs

Features:

• Premium AL6005-T5: High-strength extruded aluminum with a 25-year service life.
• Anodized Finish: 12μm-15μm anodized layer for maximum corrosion resistance in coastal areas.
• Lightweight & Strong: Reduces roof load while maintaining high wind/snow resistance.
• Rapid Install: Pre-assembled with SUS304 bolts to save on-site labor costs.
• Universal Fit: Designed for most tile types, including Roman and Flat tiles.

Production video:

For more details, pls email:rukin@grengysolar.com

Technical Specifications:

Professional Technical Enhancements (Pro-Tips)

Mechanical Strength (AL6005-T5): * Tensile Strength: > 260 MPa
Yield Strength: >240 MPa
Why it matters: This proves the hook can withstand extreme mechanical stress without deforming.

Anodizing Standards:
Coating Thickness: 12μm - 15μm (Class 15)
Why it matters: High-quality anodizing ensures the hook remains corrosion-free for 25+ years, even in coastal or high-humidity environments.
Hardware Compatibility: * Includes SUS304 M10 Bolts & Nuts with A2-70 Grading.
Why it matters: Using premium stainless steel fasteners prevents galvanic corrosion between the aluminum hook and the steel bolts.

BOS Cost Efficiency:
Lightweight Advantage: Reduces the dead load on the roof by approximately 40%compared to stainless steel hooks.
Why it matters: Lower weight means easier handling for installers and less structural reinforcement required for the building.

Installation Precision:
Pre-slotted Design: Allows for lateral and vertical adjustment (+10mm) to compensate for uneven roof battens.
Tooling: Compatible with standard M8/M10 hex sockets for rapid installation.
