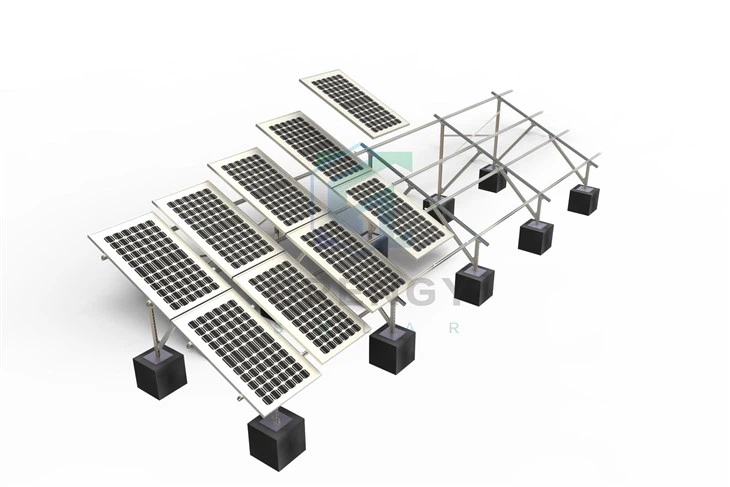

Solar Mounting Structure For Flat Rooftop Concrete Base

A rooftop mounting system for solar panels with a concrete base is an important infrastructure for installing solar panels on rooftops. Here is an introduction to it:

Components and Structure

Concrete Base: The concrete base is the foundation of the entire mounting system. It is usually made of reinforced concrete to ensure sufficient strength and stability. The base is poured on the rooftop according to the designed size and layout, and it provides a solid support for the solar panel mounting structure. The thickness and area of the concrete base may vary depending on factors such as the load of the solar panels, the structure of the rooftop, and local climatic conditions.

Mounting Frame: The mounting frame is typically made of high-quality metal materials such as aluminum alloy or galvanized steel. It is installed on the concrete base and is used to fix the solar panels. The mounting frame is designed with a certain angle and spacing to optimize the sunlight reception of the solar panels. It usually has a modular structure, which is convenient for installation and adjustment. Some mounting frames may also be equipped with adjustable components to fine-tune the angle of the solar panels according to different sunlight conditions.

Solar Panels: The solar panels are the core components of the system, which are installed on the mounting frame. They convert solar energy into electrical energy through the photovoltaic effect. Solar panels come in different sizes, power ratings, and efficiencies. When choosing solar panels for a rooftop mounting system, factors such as the available rooftop area, power demand, and budget need to be considered.

For more details, pls email:vivian@grengysolar.com
