Best Selling Solar Pv Hook For Tile Roof
Roof type: tile roof
Material: Aluminum alloy 6005 and stainless steel 304
Solar panel type: frame or frameless
Direction: horizontally or verticaly
Design wind speed: 60m/s
Snow load: 1.8KN/m2
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

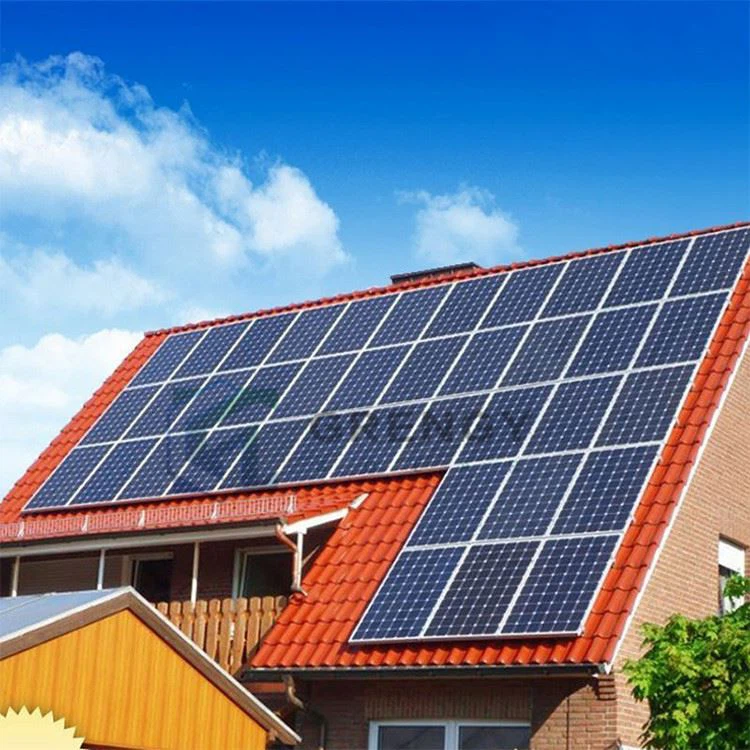

Glazed tile photovoltaic solar mounting system is mainly suitable for distributed glazed tile roof power stations. The pv system uses stainless steel hooks and aluminum alloy rails, which has strong adaptability to glazed tile roofs and low load requirements on the roof.

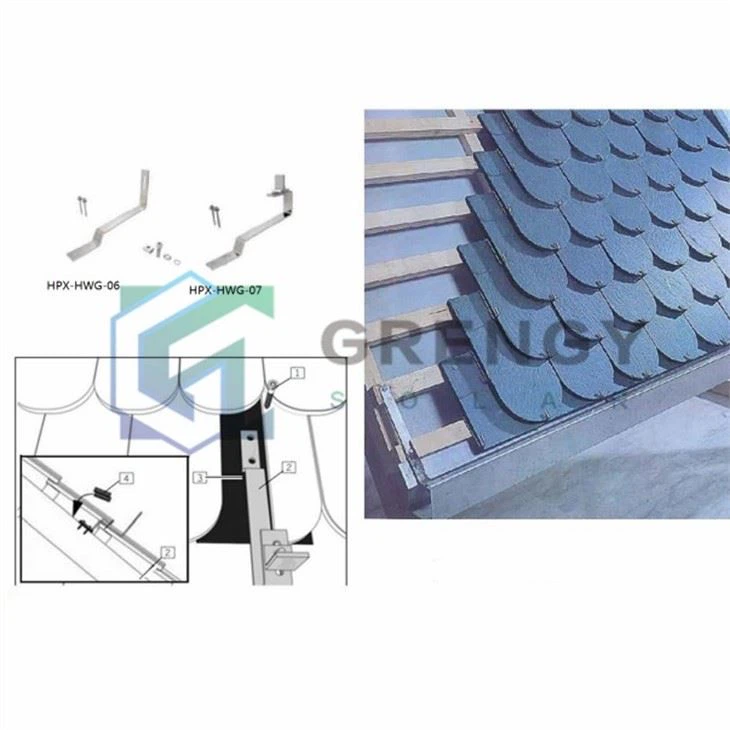

The Installation type of traditional glazed tile roof photovoltaic system:
Installation features:
A. Directly fix the solar roof hook on the wooden or metal beam under the glazed tile;
B. The aluminum rail is installed along one side of the stainless steel hook;
C. Use end clamps and inner clamps to fix the solar panels.
Technical information
| Tilted angle: Parallel to the roof | Warranty : 15 years & over 20 years lifespan |
| Material: stainless steel SUS304/ aluminum | Wind speed: 60m/s |
| Certificate: SGS, international CE | Snow load: 1.8kn/m² |
| Color: natural color | solar panel: applicable to all standard module types |

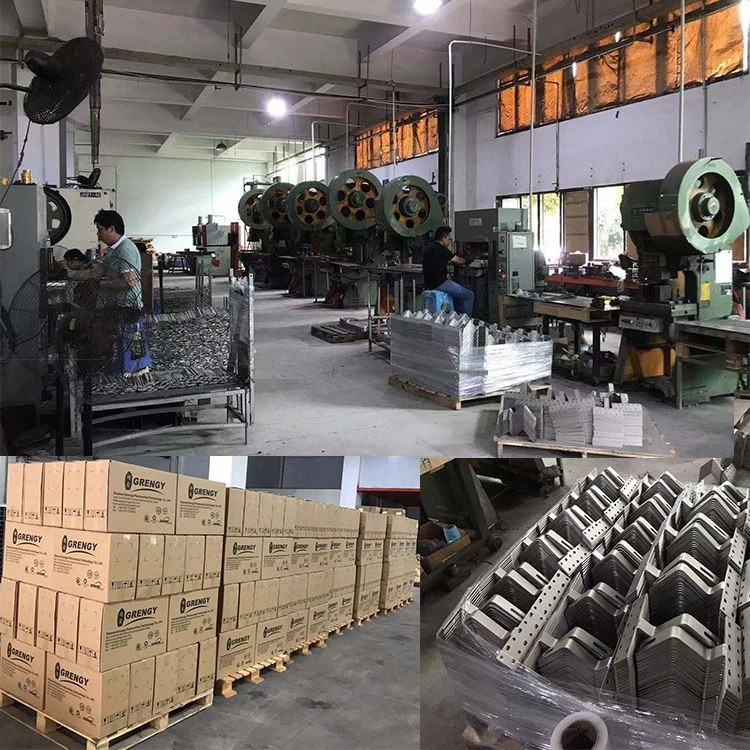

1. Only few parts are required installing on site. All pv mounting products are pre-installed in Grengy's own factory.
2. The installation tools are simple: High degree of standardization for solar mounting installation, simple installation tools are required on site.

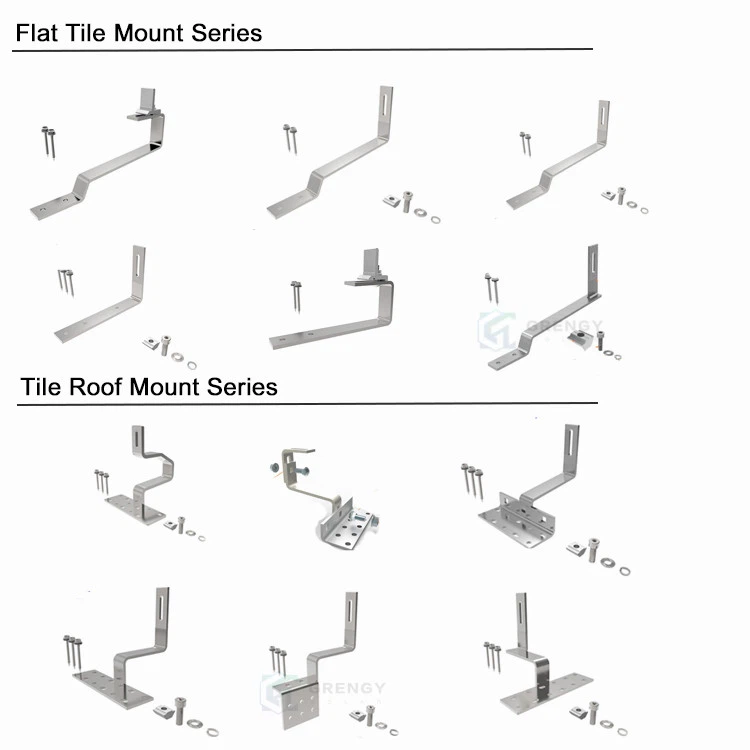

3. It can be applied to all types of tile roofs by replacing different solar hooks. OEM service is acceptable for clients.
Please contact us if you require more pv mounting solution products.
