Flat Roof Solar Mounting System
Material: Aluminum 6005-T5 & HDG or ZAM Steel
Max Wind Load: According to the projects request
Max Snow Load: According to the projects request
Solar Module Orientation: Portrait or Landscape
Application:Ground or Farm
Pre-assembled parts at the factory, fast and easy to install
OEM & Sample: Available
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
solar mounting solutions Processes
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of receipt
5
>>
After-sale Services
6
Flat Roof Solar Mounting System refers to a framework designed to securely install solar panels on flat or low-slope roofs. These systems are engineered to maximize energy capture while ensuring structural integrity and minimizing roof damage.
Key Features：
Adaptability to Flat Surfaces:
Utilizes low-profile brackets, rails, or clamps to maintain panel tilt angles (typically 5°–15°) for optimal sunlight exposure.
Non-Penetrative or Low-Impact Installation:

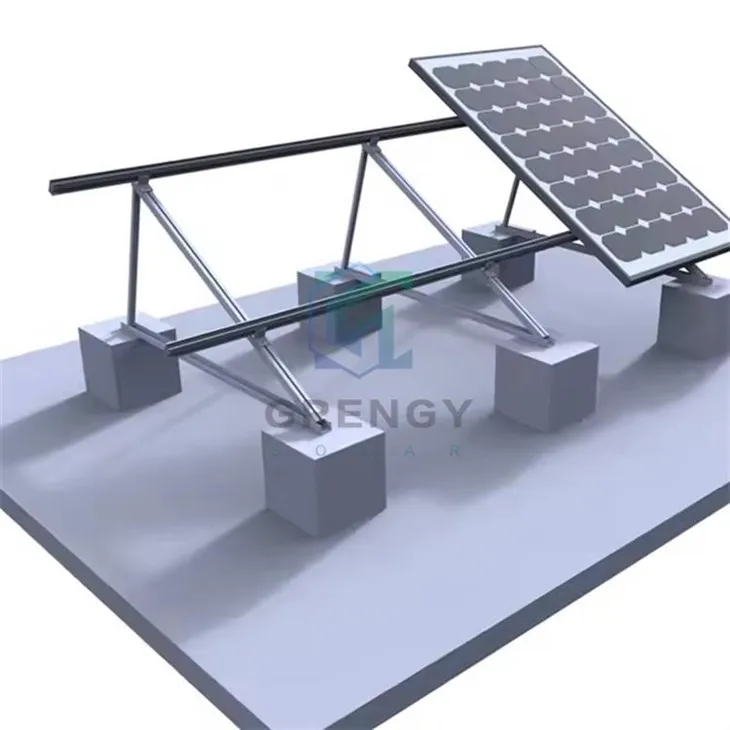

Ballasted Systems: Use weighted blocks (e.g., concrete, pavers) to secure panels without drilling into the roof.
Clamping Systems: Attach to roof edges or existing structures (e.g., parapets) with brackets.
Penetrative Systems: Require roof drilling but include waterproof seals to prevent leaks.
Weight Distribution:
Engineered to evenly distribute panel loads, avoiding concentrated stress on the roof membrane.
Common Types
| Type | Description |
|---|---|
| Ballasted System | Uses weighted bases; ideal for fragile roofs or temporary installations. |
| Flashing-Mounted | Secures panels via brackets attached to roof flashing, combining stability and waterproofing. |
| Integrated Roof System | Panels are part of the roof structure (e.g., solar shingles or tiles). |
Applications：

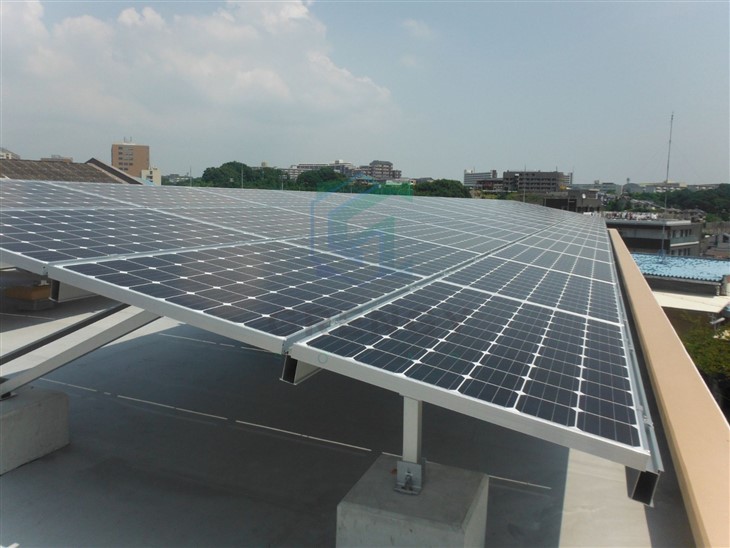

Commercial Buildings: Warehouses, offices, and retail centers with large flat roofs.
Residential Homes: Low-slope roofs where ground space is limited.
Industrial Facilities: Roofs with high structural capacity for large arrays.
Design Considerations：
Roof Load Capacity: Must comply with local building codes and engineering assessments.
Wind Resistance: Brackets and ballast weights must withstand regional wind speeds.
Drainage: Systems should not block rooftop drainage channels.
Aesthetics: Low-profile designs are preferred for urban or visually sensitive areas.
Alternate Terms: Flat Roof Solar Racking, Low-Slope Roof Mounting System.
Let me know if you need further details!
