Adjustable Ballast Roof Mounting System
Items: Adjustable Ballast Roof Mounting System
Main Material: AL 6005-T5
Lead Time: 7-10 days
OEM & Sample: Available
Supply Capacity: 6 MW/week
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Product Details

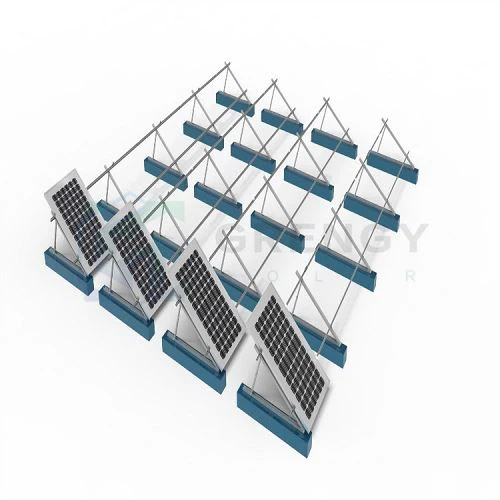

Adjustable Ballast Roof Mounting System is a multi -functional solar stent solution. It can be used not only for ground installation systems, but also for roof installation systems. The adjustable solar panel bracket consists of a guide track, medium clip, end clip, triangle, and adjustable hind legs. The material is aluminum alloy 6005-T5, and the fixed accessories are 304 stainless steel. There are three angles, the first is 10 °-15 °, the height of the hind legs is 200mm, the second is 15 °-30 °, and the height of the hind legs is 360mm. The last one is 30 °-60 °. It is recommended The hind leg height is 660mm. The basis of this adjustable triangular installation system is concrete, which is easy to install on the roof without drilling roof. This is why many users like this shelf.
 |
 |
 |
 |
Product parameters
|
Installation: Tile roof or Ground |
Standard: SGS, international CE |
|
Wind load: 60m/s |
Color: Natural |
|
Snow load: 1.4KN/m² |
Installation angle: Parallel to the roof |
|
Material: Aluminum + Stainless Steel |
Anti-corrosive: Anodized |
|
Warranty: 15 years warranty |
Duration: More than 20 years |
About Grengy Solar
From the day when our company established, our management has invested plenty of money and time in creating innovative products and holds the title for the original and market leading solar mounting system components . We work closely with our customers such as solar installers, Engineering Procurement Construction and solar components distributors etc. to develop products that evolving demands of solar PV mounting structures industry. Here Grengy is constantly making effort to provide the highest efficiency PV mounting products and supreme service to customers.
After-sales Services
As per clients’ requirements and budget, the most suitable proposal and professional services would be offered to help the project proceed further. After all of the details are confirmed by both of two sides, our production team would begin to arrange the mass production. The status of orders would be closely followed by sales representatives and updated to clients for keeping goods shipped appropriately. When the goods are well received, the installation manual or video are available for easily assembling the mounting systems.
