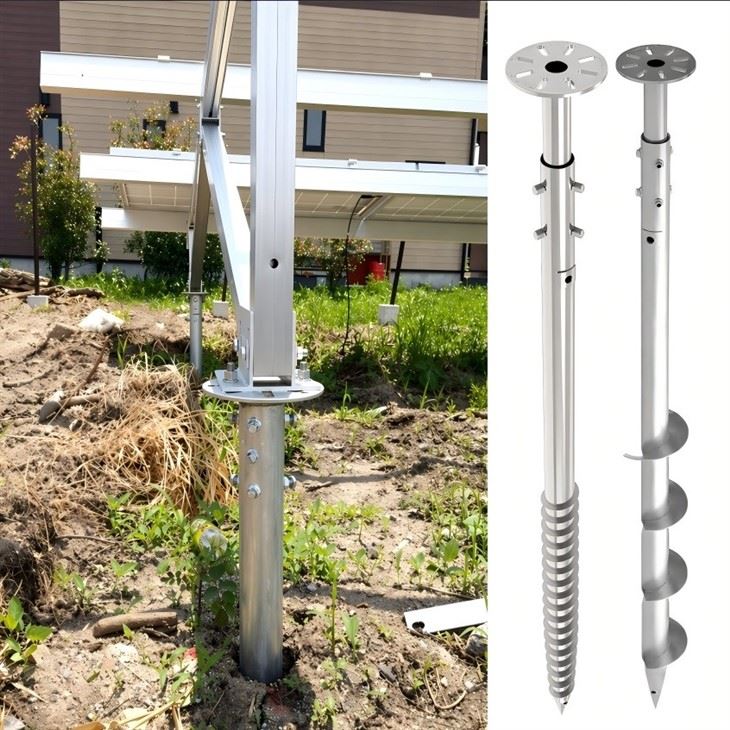

Solar Ground Mounting Screw Pile
Items: Solar Ground Mounting Screw Pile
Main Material: Hot-galvanized Steel Q235/Q355, High Class Hot-galvanized 80u~120u
Lead Time: 7-10 days
OEM: Available
Sample: Acceptable
Supply Capacity: 3000 PCS/DAY
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Our precision-machined Solar Ground Mounting Screw Pile guarantees absolute structural safety while dramatically lowering installation labor costs.
Premium Protection: High-strength structural steel with a premium Hot-Dip Galvanized coating for 25+ years of zero-maintenance underground service life.
All-Weather Installation: Driven easily into sandy soil, clay, or gravel without being delayed by rain or cold weather.
Certified Loading: Engineered to withstand wind loads up to 60 m/s and heavy snow pressure, meeting ASCE 7, AS/NZS 1170, and Eurocode standards.
Zero MOQ Friction: Enjoy flexible factory-direct sourcing with No Minimum Order Quantity (No MOQ) on custom lengths and flange patterns.
For more details, pls email: rukin@grengysolar.com
Product Specifications
| Parameter Item | Technical Specifications |
| Product Name | Solar Ground Mounting Screw Pile / Helical Ground Screw |
| Material Grade | Premium Structural Steel (Q235B / Q355B) |
| Surface Treatment | Hot-Dip Galvanized (HDG) |
| Galvanization Thickness | Average≥ 85 μ (Compliant with ISO 1461 / ASTM A123) |
| Pipe Diameter Options | Ф 60mm /Ф 76mm / Ф89mm (Customizable) |
| Pipe Wall Thickness | 2.75mm / 3.0mm / 3.5mm / 3.75mm / 4.0mm |
| Length Range | 1000mm to 3000mm (Tailored to soil testing profiles) |
| Flange Configurations | Flange (Round, Square, Hexagonal), U-Shape, Adjustable, or Threaded Top |
| Applicable Soil Profiles | Sandy Soil, Cohesive Clay, Loose Gravel, Hillsides, and Hard Ground |
| Max Wind Load | Designed up to 60 m/s (216 km/h) |
| Max Snow Load | Designed up to 1.4 kN/m² |
| Design Standards | ASCE/SEI 7, AS/NZS 1170.2, Eurocode 1, IBC |
| Designed Lifespan | 25+ Years |
| Warranty | 15-Year Structural Warranty |
| MOQ Constraint | No MOQ (Zero Minimum Order Quantity) for standard and customized piles |
FAQ
1. Are you a trading company or a manufacturer?
We are a direct manufacturer with our own production facilities. You are welcome to visit our factory at any time. You can also take a virtual tour via our VR factory link: www.grengysolar.com.
2. Can I place a sample order?
Yes, we provide sample orders for quality verification and testing. Mixed samples from different product types are also acceptable.
3. Is there a minimum order quantity (MOQ)?
For regular products, there is no MOQ requirement. Sample orders, even for a single piece, are available for evaluation.
