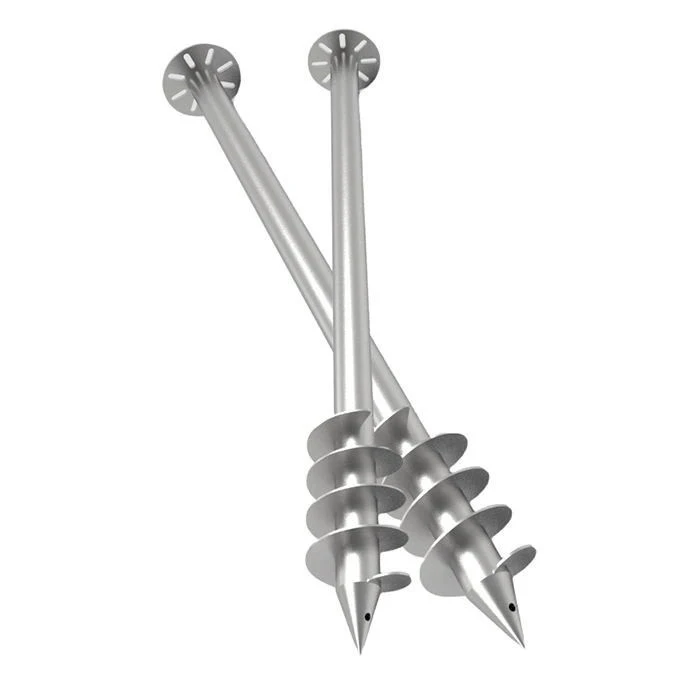

Solar Ground Mount Foundation Pile
Items: Solar Ground Mount Foundation Pile
Main Material: Hot-galvanized Steel Q235, High Class Hot-galvanized 80μ+
OEM & Sample: Available
Specification: Regular 800- 3500 mm & Customized
Thickness: 2.5mm/3.0mm/3.5mm & Customized
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Our address:
713 Zhonghengji Building, No. 223, Qishan North Road, Huli District, Xiamen
Phone/Whatsapp: +86-15060743485
E-mail: rukin@grengysolar.com
Upgrade your ground-mounted photovoltaic installations with our heavy-duty Solar Ground Mount Foundation Pile. Designed as a high-efficiency alternative to traditional concrete blocks, this engineered steel pile delivers immediate load-bearing stability, bypassing wet civil works and accelerating project schedules from day one.
Engineered Advantages

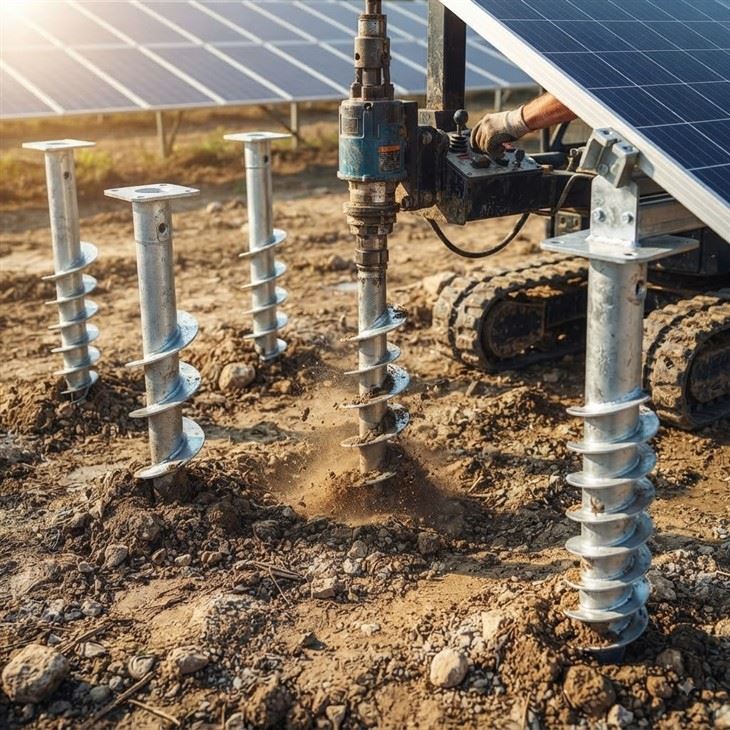

- Rapid Mechanical Driving: Installed swiftly using standard machinery or excavator attachments to meet tight construction deadlines.
- Zero Excavation & Curing: Bypasses trenching, formwork, and cement mixing, allowing immediate mounting installation upon placement.
- Eco-Conscious Decommissioning: Leaves natural terrain intact and is fully recoverable at the end of the project lifecycle.
- Decade-Long Durability: Fabricated from premium structural steel with a heavy-duty Hot-Dip Galvanized finish for 25+ years of rust resistance.
- High Load Stability: Delivers superior uplift, shear, and compressive resistance against severe environmental forces.
Technical Specifications
| Feature | Standard Spec | Custom Capability |
| Application | 50MW+ Ground-Mounted Solar PV | Custom load calculations & FEA |
| Material | Q235B / Q355B | High-tensile steel grades available |
| Pipe Diameter | 76 mm, 89 mm, 114 mm | Up to 219 mm for extreme loads |
| Helix / Thread | Laser-cut continuous spiral thread | Custom pitch, thickness & blades |
| Galvanization | Hot-Dip Galvanized (ISO 1461) | Heavy zinc layer average ≥85μ |
| Certifications | ISO 9001, CE, TUV, EN 1090 | Full Mill Test Reports provided |

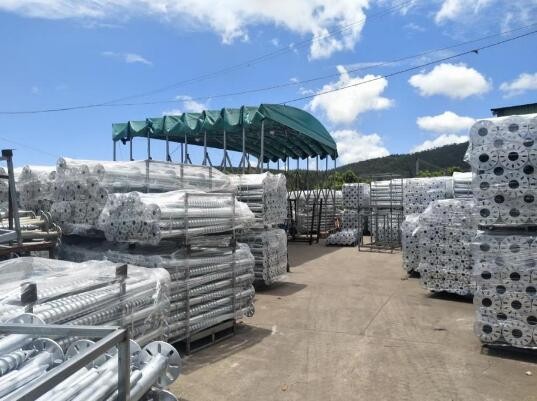

Production:

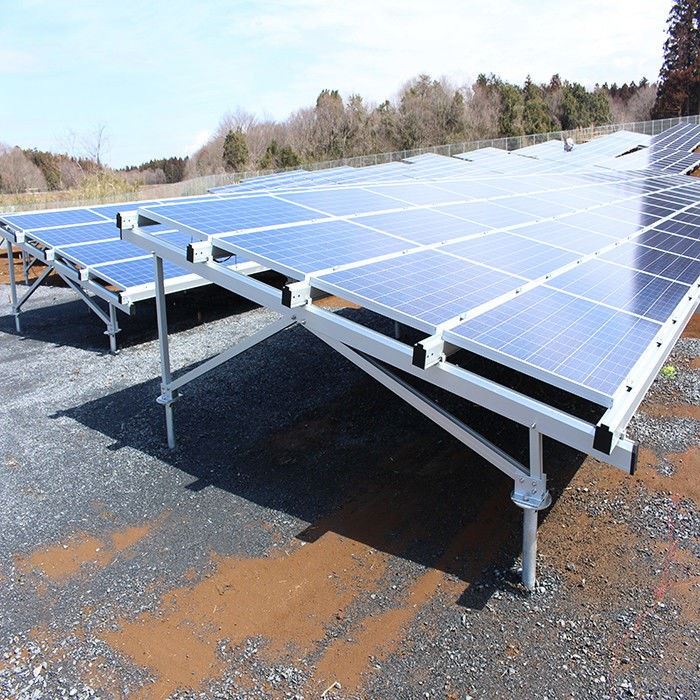

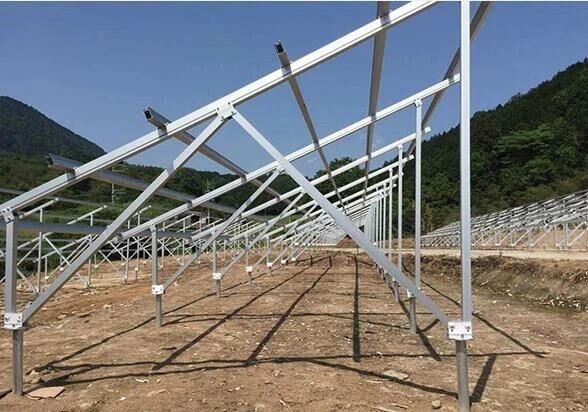

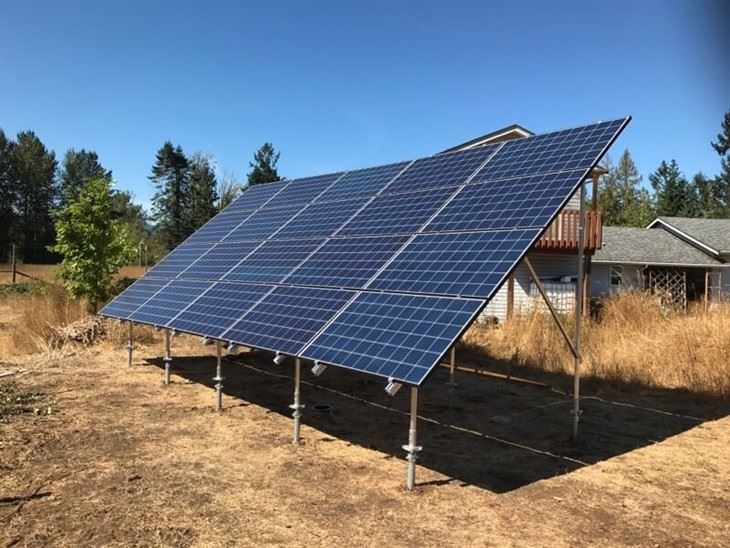

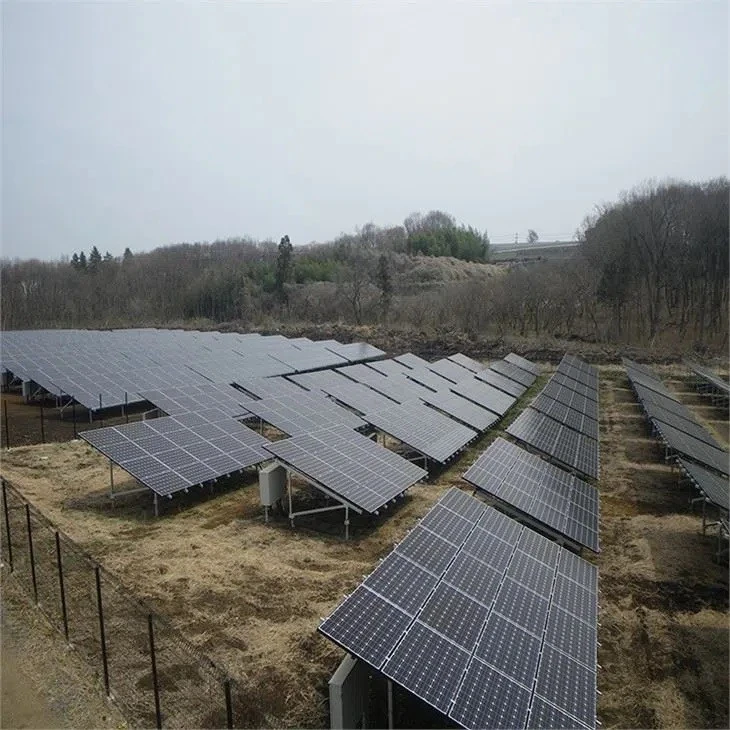

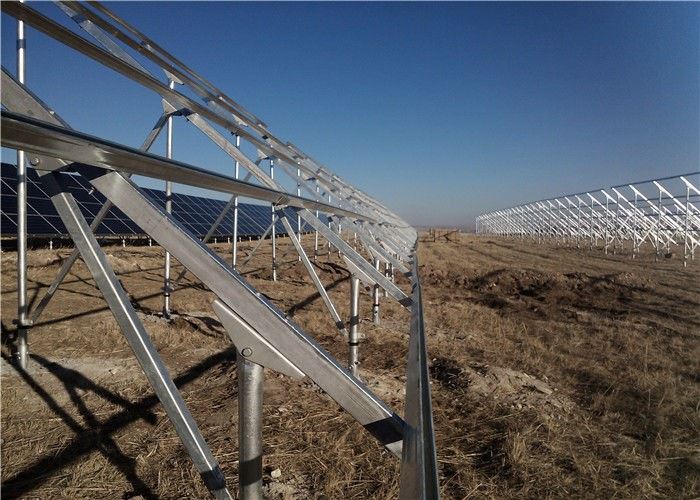

Application:
Quick FAQ
Q1: How do these foundation piles perform in compacted or mixed soils?
A: They penetrate standard profiles like clay, sand, and gravel efficiently, while high-torque hydraulic drivers effortlessly manage denser sub-surfaces.
Q2: What is the typical installation speed per machine?
A: With mechanical drivers averaging 2 to 3 minutes per unit, installation teams can reliably secure hundreds of piles daily.
Q3: How is long-term weather protection achieved?
A: Each pile features an 80+ micron Hot-Dip Galvanized coating, engineered to withstand aggressive outdoor exposure for 25 to 30 years.
Q4: What data points are necessary to calculate the correct pile dimensions?
A: Sizing is engineered directly from site geotechnical reports, total structural dead load, and local wind/snow parameters.
Q5: What financial benefits do foundation piles provide over traditional pouring?
A: They eliminate heavy hauling and curing delays, cutting on-site labor costs by up to 50% and shrinking total construction timelines.
