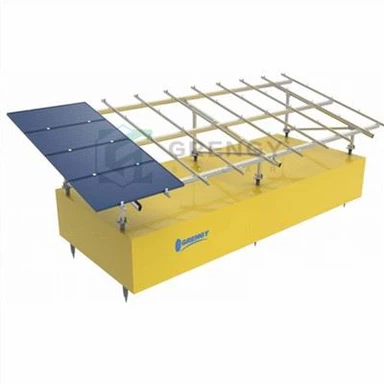

Solar Ground Mounting Structure Solution

The Grengy Solar Standard Ground Mounting structure solution provides a quick-install, secure structure for PV Solar panels for ground installations. It is the ideal option when roof space is not available or when only ground space can be utilised.

The modular design reduces the number of components and is universal, suitable for all size PV Solar panels and can accommodate various configurations from 4 to 80 panels per table in a portrait orientation with a fixed tilt angle. This allows for the installation to be set at a perfect angle to optimise energy production for different countries.

The solution is available for either In-land or coastal:

In-land applications for more than 20 km away from the sea manufactured from Pre-Galvanised material.

Coastal applications for up to 20 km from the sea is manufactured from Hot Dip Galvanised material

The choice of the best ground mounting solution is influenced by the soil composition (either standard footing for concrete strip foundations, pile driving or standard footing for concrete slab installations) will be used.

For larger installations steel piles are rammed into the ground. The thickness, length and depth of the piles depend on the soil composition confirmed through geological survey results. From sandy soil conditions to rocky soil, the length of the pile will be determined by the pull-out test performance of the soil. The adequate size pile will be specified by the engineering simulation done for the site conditions.

Where the soil is not suited for piles an anchor system can be used in the form of a concrete strip foundation or a concrete slab. This is often used in commercial installations where ground penetration is not permitted or for smaller size installations.

The mounting structure meets structural engineering requirements and have been designed and manufactured to International standards.

System Characteristics :

Versatility:

Standard arrays/tables suitable for all size panels.Custom made to the site specifics. Available fixed tilt of the structure from 10 up to 60 degrees.

Design :

Flexible design to accommodate all requirements.

Can accommodate up to 40 meters in width PV solar arrays.

Provides any fixed tilt angle (site specific).

Mechanical performance verified by engineers.

Compact and easy to transport.

Flexible:

Modular design.Portrait orientation is available – 2 rows of panels per table.

Offers fixed tilt angles with desired degree tilt from the customer.

Fast to assemble.

Light weight modular design.Quick and easy installations with no welding or cutting required on site.

Cost Effective:Specifically designed to be cost effective solutions.

Tools:

Ramming machines are required for larger installations.

Elementary (basic) civil works for the concrete foundation option.

Project design:Meets structural engineering requirements.

Long life span:Durable material for long life span.

maintenance:Extended life span of the material through maintenance.

FAQ

Q:Do you offer OEM service and can you produce as our drawings?
A:Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawing.

Q: What's your after-sale service?

A: Some damageable spare parts can be offered free.

Q:How long is the production cycle?

 A: 30-50 days

Q:What is your main market?

A:Europe, The North America, South America, Australia, The middle east, and etc.

Q: Can I get a sample order?

Yes, there is no MOQ limited, one sample order is ok.

Q : Is it OK to print my logo on products?

A : Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q:How your quality guarantee?
A:We have 100% quality guarantee to customers. We will be responsible for any quality problems.
