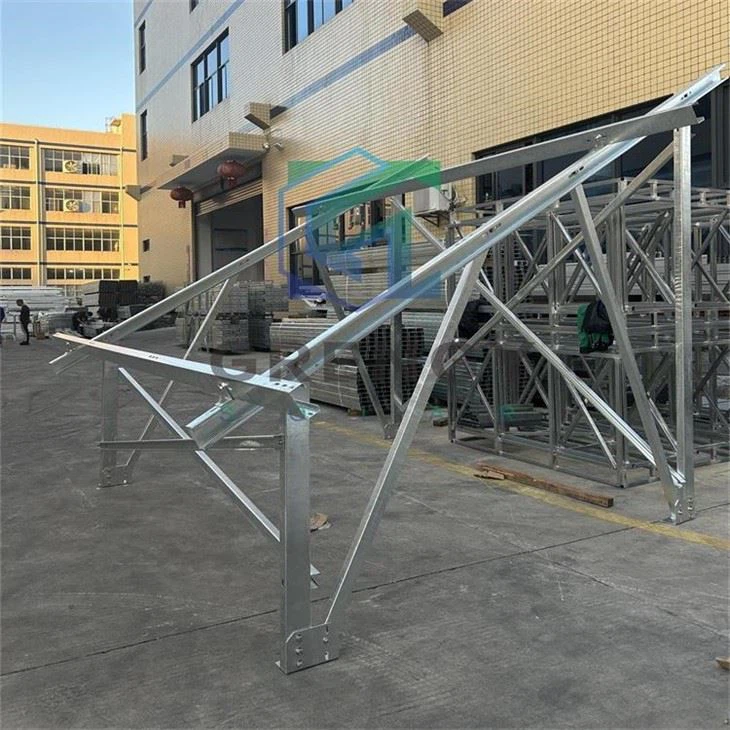

HDG C Profile For Ground Solar Panel Rack System
Material:HDG or ZAM Steel
Max Wind Load: According to the projects request
Max Snow Load: According to the projects request
Solar Module Orientation: Portrait or Landscape
Application: Ground or Farm
Pre-assembled parts at the factory, fast and easy to install
OEM & Sample: Available
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Xiamen Grengy Photovoltaic Technology Co., Ltd delivers integrated solar mounting systems from engineering to lifetime maintenance. As a China-based ISO 9001 factory, we simplify solar projects with:
Design: Site-specific BIM/CAD plans & wind load simulation (60m/s rated)
Production: ISO-certified manufacturing with ±0.05mm precision
Logistics: Global shipping & customs documentation support
Installation: On-site guidance or contractor training
After-Sales: 24/7 technical support & corrosion warranty
For more details, pls email:rukin@grengysolar.com

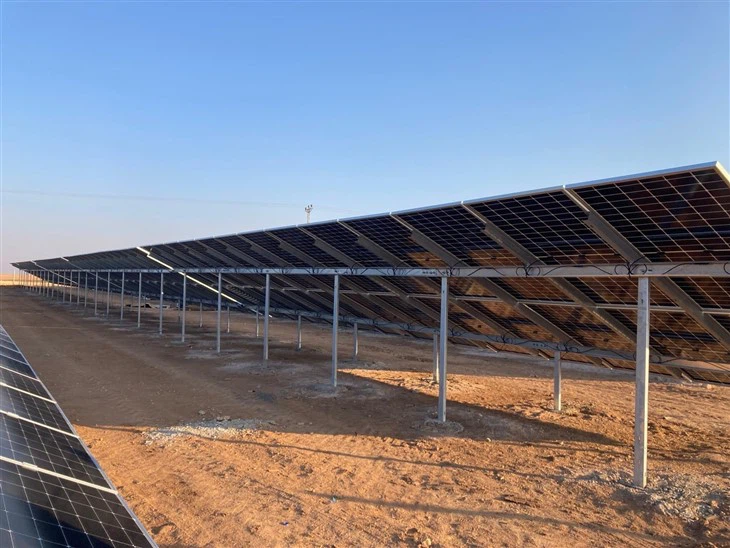

The HDG C profile ground solar panel rack system, made of Hot Dip Galvanized (HDG) C-shaped steel, serves as the supporting structure for ground-mounted solar power stations.
Materials
Hot dip galvanized carbon steel is adopted, with a galvanized layer thickness of 60 - 80μm, ensuring a service life of at least 25 years.
Features
Wide Applicability: It can adapt to complex terrains such as deserts and grasslands, as well as different soil conditions. It is compatible with both framed and frameless crystalline and thin-film solar panels and can be installed in either portrait or landscape orientation.
Good Mechanical Properties: It has high corrosion resistance and can withstand strong winds and heavy snow. It has passed safety tests through mechanical calculations and simulation software, ensuring reliability.
Flexible Installation: Installation angles, heights, and load capacities can be customized. The modular design facilitates on-site installation, reducing installation time and labor costs. Some C-shaped steel has ribs and toothed edges, which enhance bending resistance, shear resistance, anti-slip, and impact resistance. The strip-shaped mounting holes on the back are convenient for installation adjustment.
Foundation Types
C-shaped Steel Piles: Suitable for areas where the soil is not too hard, and can be quickly driven into the ground by a pile driver.
H-shaped Steel: With high strength and stability, it is suitable for areas with high bearing capacity requirements and complex geological conditions.
Screw Piles: Can be screwed into the ground, which is convenient for installation and adaptable to different soil layers. It is often used in soft soil or sandy soil areas.
Concrete Piles: Provide stable support and are suitable for areas with high requirements for foundation stability, such as areas with high wind or seismic levels.
Application Scenarios
Large-scale Ground Photovoltaic Power Stations: It provides reliable support for a large number of solar panels, improving the overall efficiency and stability of the power station.
Agricultural Photovoltaic Complementary Projects: While supporting solar panels for power generation, it reserves space for agricultural production, realizing the dual utilization of land resources.
Desert Photovoltaic Projects: Due to its adaptability to complex terrains, it can make full use of the abundant solar resources in deserts.
