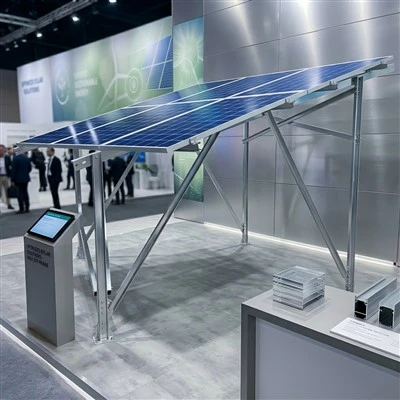

Fixed-Tilt Ground Mount Solar Racking System
Material: Aluminum 6005-T5 & HDG or ZAM Steel
Max Wind Load: According to the project's request
Max Snow Load: According to the project's request
Solar Module Orientation: Portrait or Landscape
Application: Ground or Flat Roof
Pre-assembled parts at the factory, fast and easy to install
OEM & Sample: Available
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1. Product Overview
A high-efficiency, engineered ground racking system optimized for commercial, industrial, and utility-scale solar PV installations. Designed to maintain a fixed tilt angle for maximum annual solar yield, the system features AL6005-T5 high-strength aluminum alloy (or ZAM / Hot-Dip Galvanized Steel) and SUS304 stainless steel hardware, offering an ideal balance of structural durability, corrosion protection, and low total cost of installation.
2. Key Advantages
- Optimized Energy Yield: Custom fixed tilt angles tailored to project latitude to maximize annual power generation.
- Superior Corrosion Protection: Anodized aluminum / ZAM structure ensures reliable performance in harsh coastal and high-humidity environments.
- Rapid On-Site Assembly: Pre-assembled structural components eliminate on-site cutting and welding, reducing labor time and site costs.
- Flexible Foundation Support: Easily adapts to ground screws, concrete ballast foundations, or driven steel pile systems.
- Universal Module Fit: Fully compatible with all mainstream framed and dual-glass bifacial PV modules in portrait or landscape layouts.
For more details, Pls email rukin@grengysolar.com
3. Foundation Options
Ground Screw Foundation: Fast installation, ideal for loose soils or sandy ground; zero concrete required.

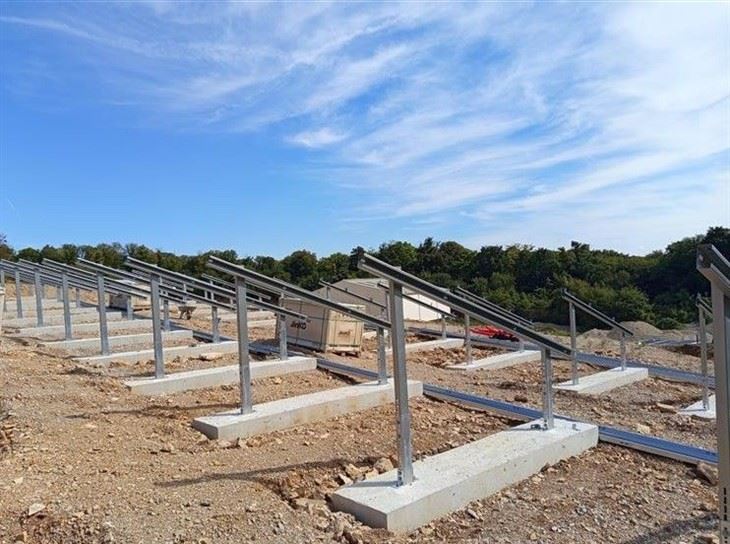

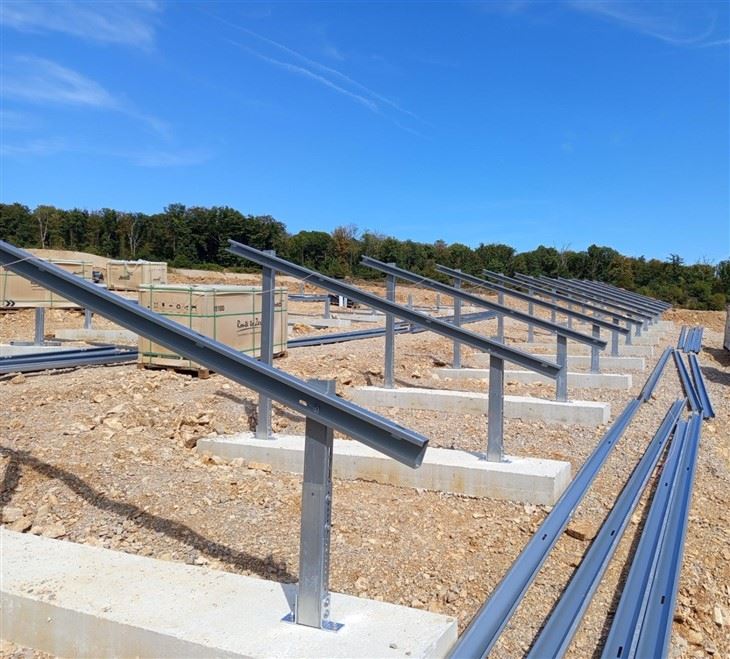

Concrete Ballast / Pad: Excellent for rock/hard ground or sites where ground penetration is restricted.

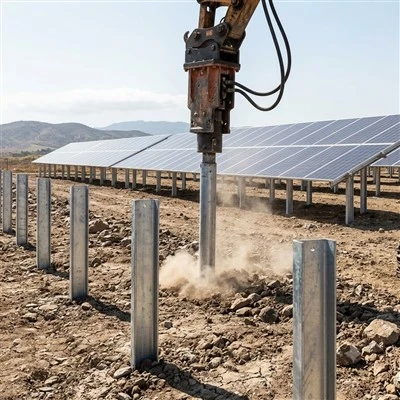

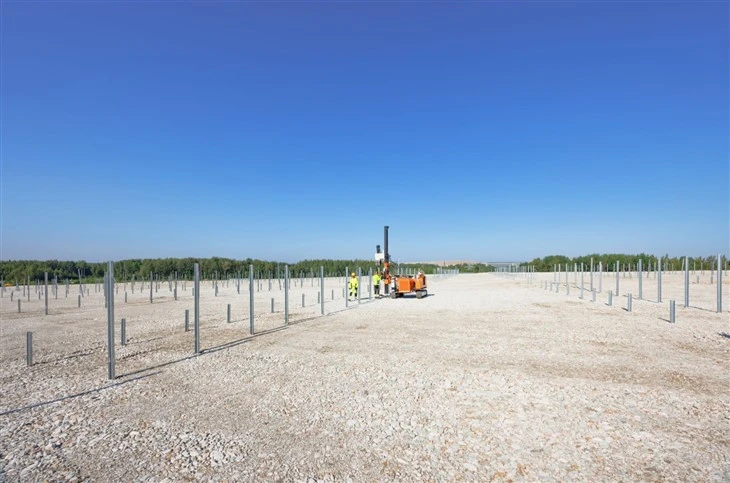

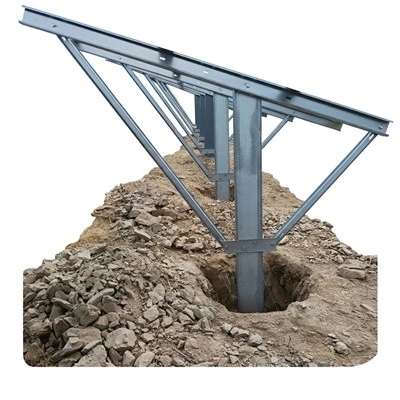

Driven Steel Pile (C/H Post): Cost-effective solution for large-scale utility projects in uniform soils.
4. Technical Specifications
| Specification | Technical Detail |
| Application | Utility-Scale, Commercial & Industrial (C&I), Agrivoltaic |
| Main Material | High-Strength AL6005-T5 Aluminum / ZAM Steel / HDG Steel |
| Fastener Material | Stainless Steel SUS304 (A2-70) / Dacromet Hardware |
| Surface Finish | Anodized ($\ge 10\text{–}15\mu\text{m}$) / ZAM Coating |
| Tilt Angle | Fixed $0^\circ \text{ to } 45^\circ$ (Customized by site latitude) |
| Module Arrangement | Portrait (1P / 2P) or Landscape |
| Max Wind Load | Up to $60\text{ m/s}$ ($216\text{ km/h}$) |
| Max Snow Load | Up to $1.4\text{ kN/m}^2$ |
| Design Standards | AS/NZS 1170, Eurocode (EN 1991/1999), ASCE 7-16 |
| Design Life / Warranty | 25-Year Design Life / 10–15 Year Warranty |

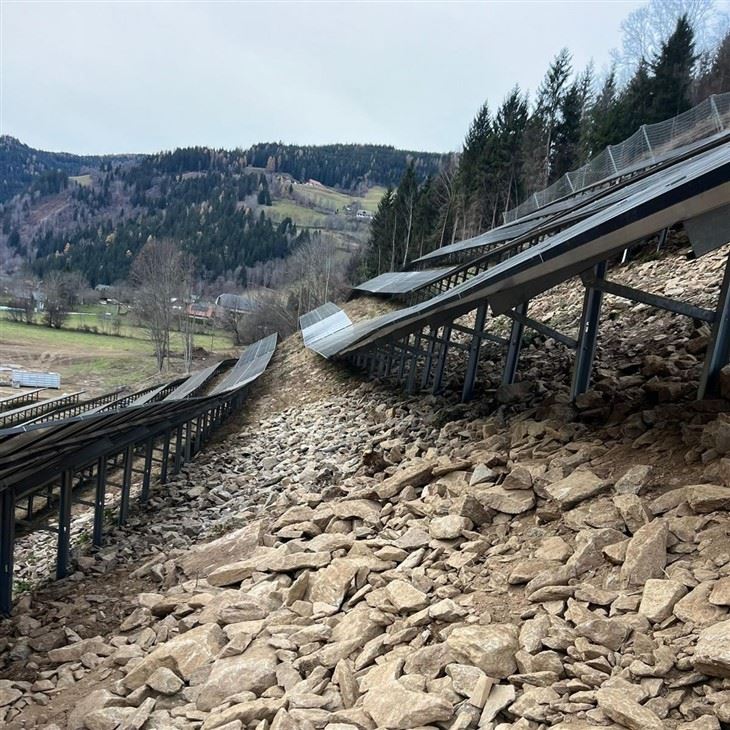

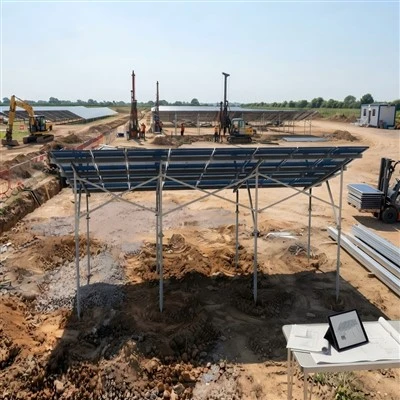

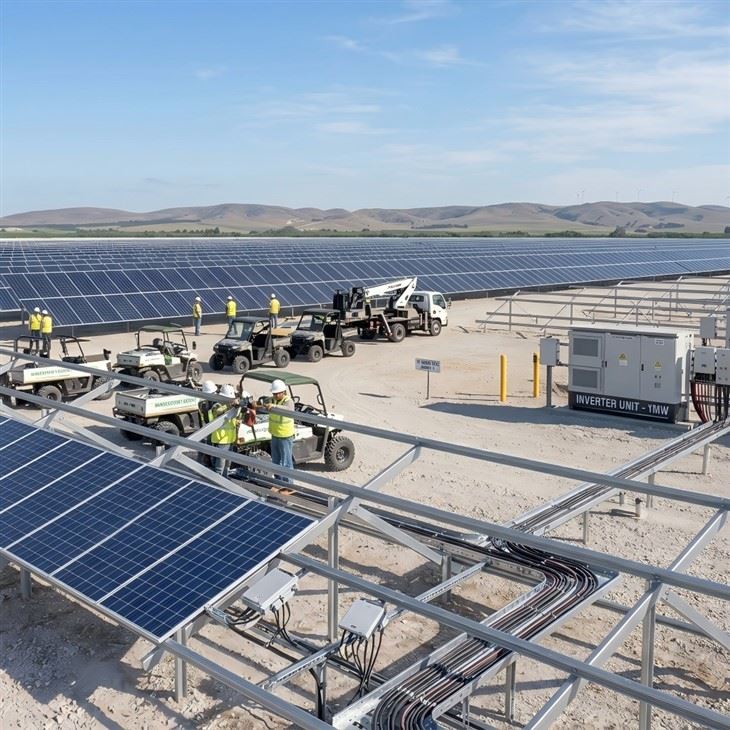

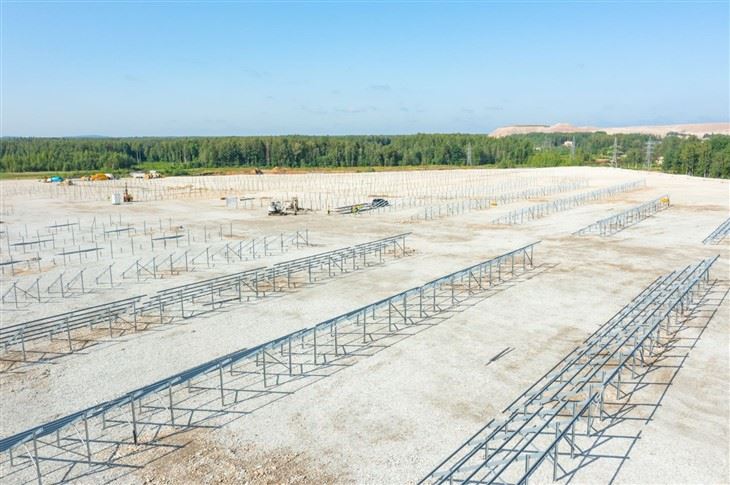

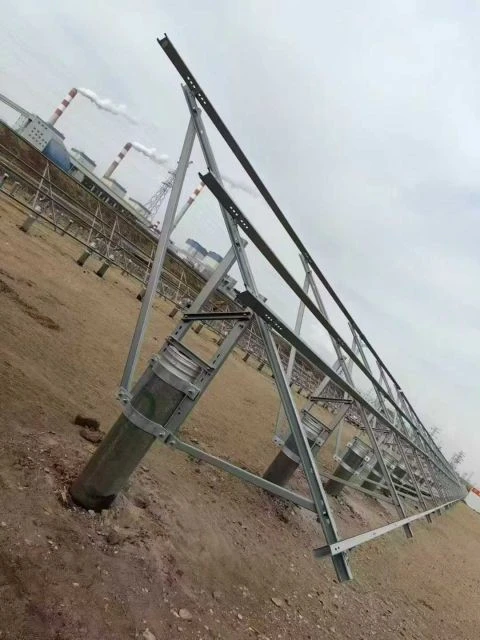

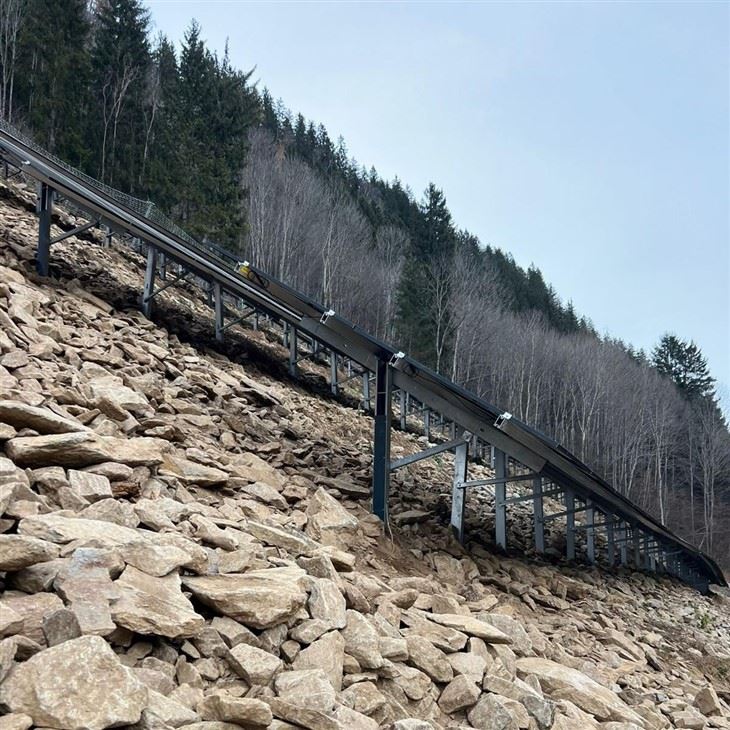

5. Projects view
