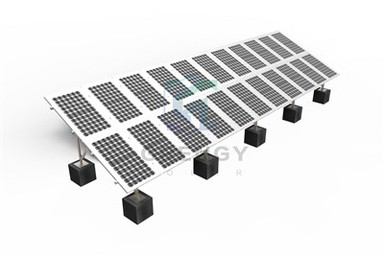

Concrete Single Pile Solar Mounting System
Concrete Single Pile Solar Mounting System
Material: Aluminum 6005-T5 & HDG & ZAM
Max Wind Load: According to the projects request
Max Snow Load: According to the projects request
Solar Module Orientation: Portrait or Landscape
Application:Ground or Farm
Pre-assembled parts at the factory, fast and easy to install
OEM & Sample: Available
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
who choose us?
Xiamen Grengy Photovoltaic Technology Co., Ltd., founded in 2007, specializes in R&D, design, manufacturing, and sales of diverse photovoltaic bracket products. Upholding the "Serve Customers and Create Value" principle, it offers high-quality, efficient, safe, and long-lasting products. With a professional and efficient R&D team, it supplies various photovoltaic bracket products of different specs and models..
one-stop solution
professional team
high quality
For more details, pls email:vivian@grengysolar.com
Concrete Single-Pile Solar Mounting System
Designed for ground-mounted photovoltaic (PV) installations, this system uses a single precast or cast-in-place concrete pile as the foundation to support solar panels efficiently. It balances stability, cost-effectiveness, and ease of installation.
System Composition
Concrete Pile Foundation
Design: A single cylindrical or square concrete pile, either prefabricated or poured on-site.
Function: Transfers structural loads (wind, snow, seismic) to the ground while minimizing soil disturbance.
Depth: Determined by soil conditions and local building codes to ensure adequate anchoring.
Mounting Structure
Materials: Steel or aluminum frames with corrosion-resistant coatings.
Components:
Adjustable Brackets: Allow fine-tuning of panel tilt angles (e.g., matching local latitude for optimal energy capture).
Rail Systems: Secure solar panels to the foundation.
Fixing & Accessories
Galvanized steel bolts, nuts, and clamps for rigid connections between panels, brackets, and the pile.
Key Features
Advantages
Rapid Installation: Reduces labor time compared to multi-pile or concrete slab foundations.
Minimal Ground Impact: Requires less excavation and minimal disruption to natural habitats.
Cost Efficiency: Lower material and transportation costs than large concrete bases.
Soil Versatility: Effective in various soil types (e.g., clay, sand) with proper engineering.
Space-Saving: Concentrated load reduces overall system footprint.
Disadvantages
Soil Limitations: Not ideal for loose or highly unstable soils without additional reinforcement.
Height Constraints: Pile length may be limited by site accessibility or soil conditions.
Equipment Needs: Requires specialized machinery for pile driving or casting.
