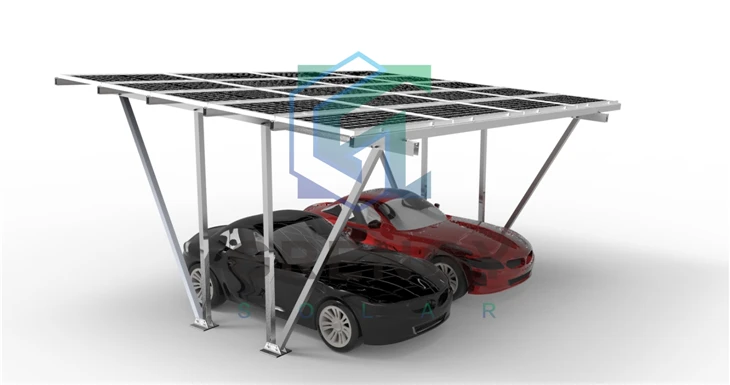

Carport Solar Mounting Systems
Items: solar carport
Main Material: ZAM Coating Steel/ Galvanized steel Q235 & Aluminum 6005-T5
OEM & Sample: Available
Application： carport, gazebo, Pergola, or patio cover
With or without waterproof
Detail: Customized according to user requirements
- Fast Delivery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Xiamen Grengy Photovoltaic Technology Co., Ltd
Xiamen Grengy Photovoltaic (est. 2007) designs precision-engineered solar mounting systems with 15GW+ global deployments. Our ISO-certified solutions exceed industry benchmarks in load capacity (+15%) and installation efficiency, backed by 200+ structural patents. From desert solar farms to floating PV, we deliver AI-optimized systems for 30-year performance in extreme environments.
Professional team
Our professionals have in-depth knowledge and rich experience in the field of photovoltaic technology, enabling the company to keep up with the international advanced level in product R&D and innovation
Certifications and Standards Compliance
The company's reputation is enhanced by its compliance with a wide range of international and domestic certifications. Having successfully passed UL, TUV, CE, CQC, SAA, AS/NZS1170
1000+
Projects completed
100+
Exported Countries
10GW+
Total Installed Capacity
60+
Patents
For more details, pls email:rukin@grengysolar.com

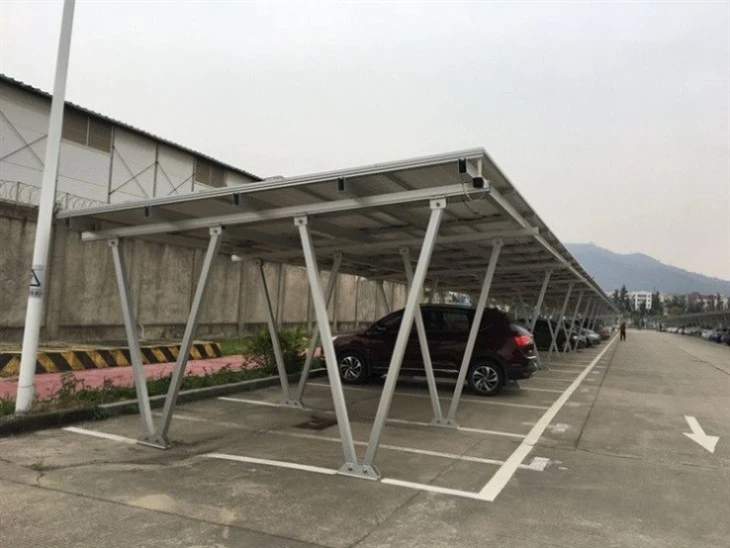

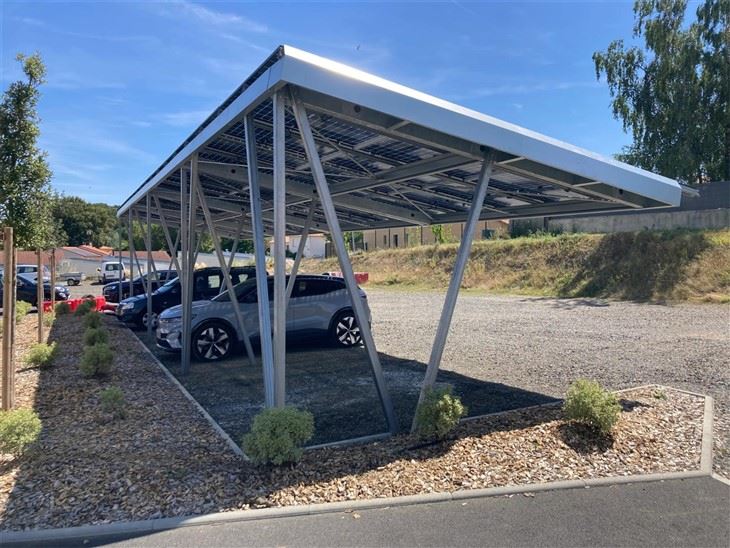

A carport solar mounting system is a structure designed to support solar panels while providing shade and protection for parked vehicles. These systems combine the benefits of solar energy generation with covered parking, making them a popular choice for residential, commercial, and public applications.
Key Components of a Carport Solar Mounting System
Support Structure (Frame)
- Made of steel, aluminum, or galvanized metal for durability.
- Designed to withstand wind, snow, and other environmental factors.
- Can be single-row (for one vehicle) or multi-row (for multiple vehicles).
Solar Panels
Mounted on top of the carport structure.
Typically use monocrystalline or polycrystalline PV panels.
Mounting Rails & Clamps
Secure the solar panels to the carport frame.
Adjustable tilt angles may be included for optimal sunlight exposure.
Foundation
Can be ground-mounted (concrete footings, piers) or attached to an existing surface (asphalt, concrete).
Electrical Components
Inverters, wiring, and junction boxes are used to convert and transmit solar energy.
May include EV charging stations for electric vehicles.
Types of Carport Solar Mounting Systems

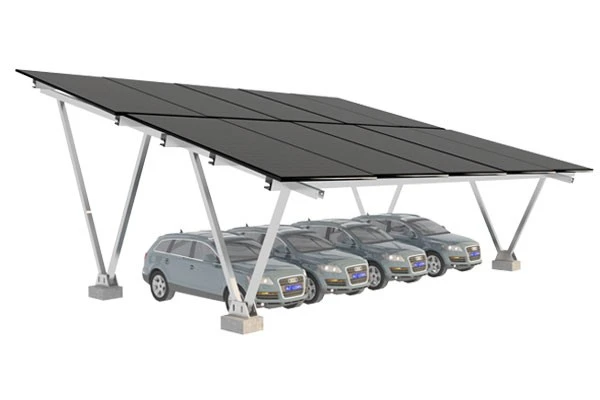

Single Slope (Tilted One Direction)
Simple design, cost-effective.
Fixed tilt angle for optimal sun exposure.

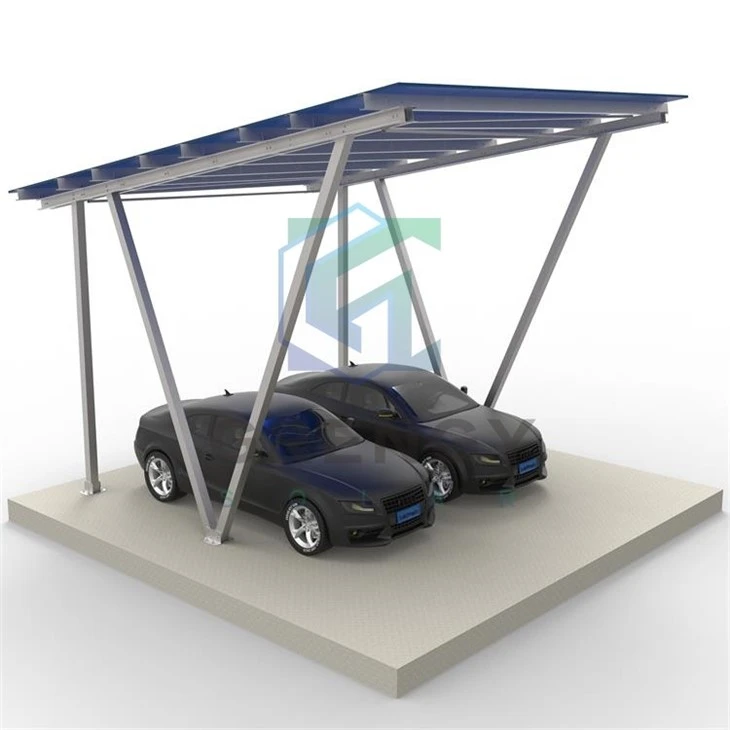

Dual Slope (Gable Design)
Symmetrical design with panels on both sides.
Better wind resistance and aesthetic appeal.

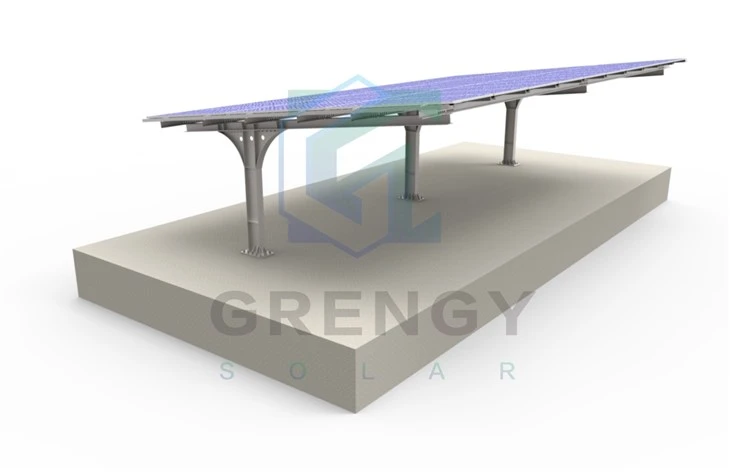

Cantilever (Single-Post Design)
Minimalist structure with support on one side.
Allows for more open space underneath.
Custom & Modular Designs
Scalable for large parking lots (commercial/industrial use).
Can integrate with existing carports or buildings.
Advantages of Carport Solar Mounting Systems
✅ Dual-Purpose Use – Generates clean energy while providing shade for vehicles.
✅ Space-Efficient – Ideal for properties with limited roof space.
✅ Increased Property Value – Enhances sustainability and energy independence.
✅ EV Charging Compatibility – Can power electric vehicle charging stations.
✅ Government Incentives – Eligible for tax credits, rebates, and net metering in many regions.
Applications
Residential – Homeowners with large driveways.
Commercial – Office buildings, shopping centers, and supermarkets.
Public & Institutional – Airports, schools, and municipal parking lots.
